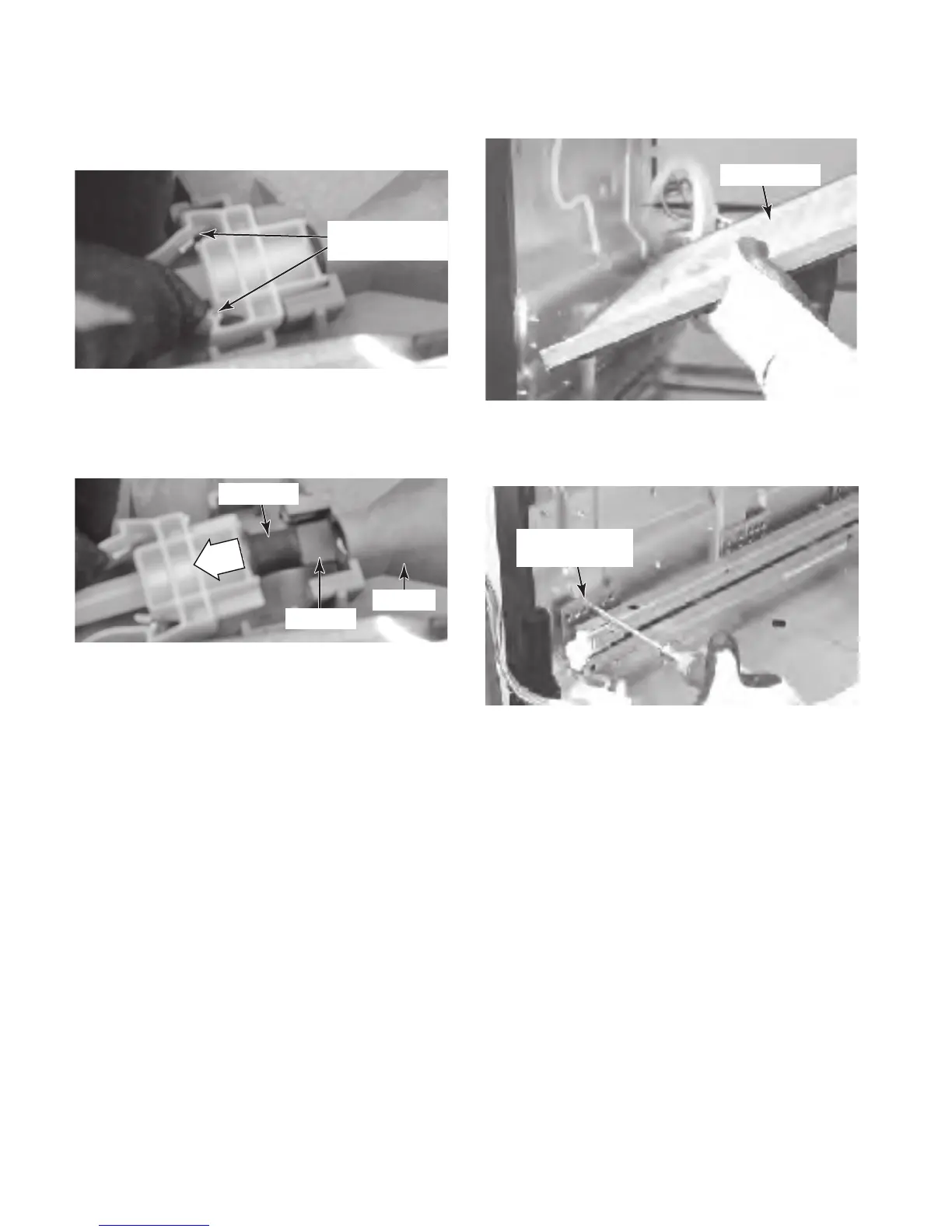

f) Pull the inlet tube out of the lid inlet.

NOTE: When reinstalling the inlet tube,

first install the duck bill into the lid inlet,

then install the inlet tube.

Water Inlet Tube

Connector Tabs

Lid Inlet

Duck Bill

Inlet Tube

d) Tilt the lid to the left.

e) Squeeze the tabs on the water inlet

tube connector.

g) Remove the lid assembly from the

cabinet.

Lid Assembly

h) Remove the three screws from the

slide assembly and remove the assem-

bly from the cabinet.

Slide Assembly

Screw (1 of 3)
