4-14

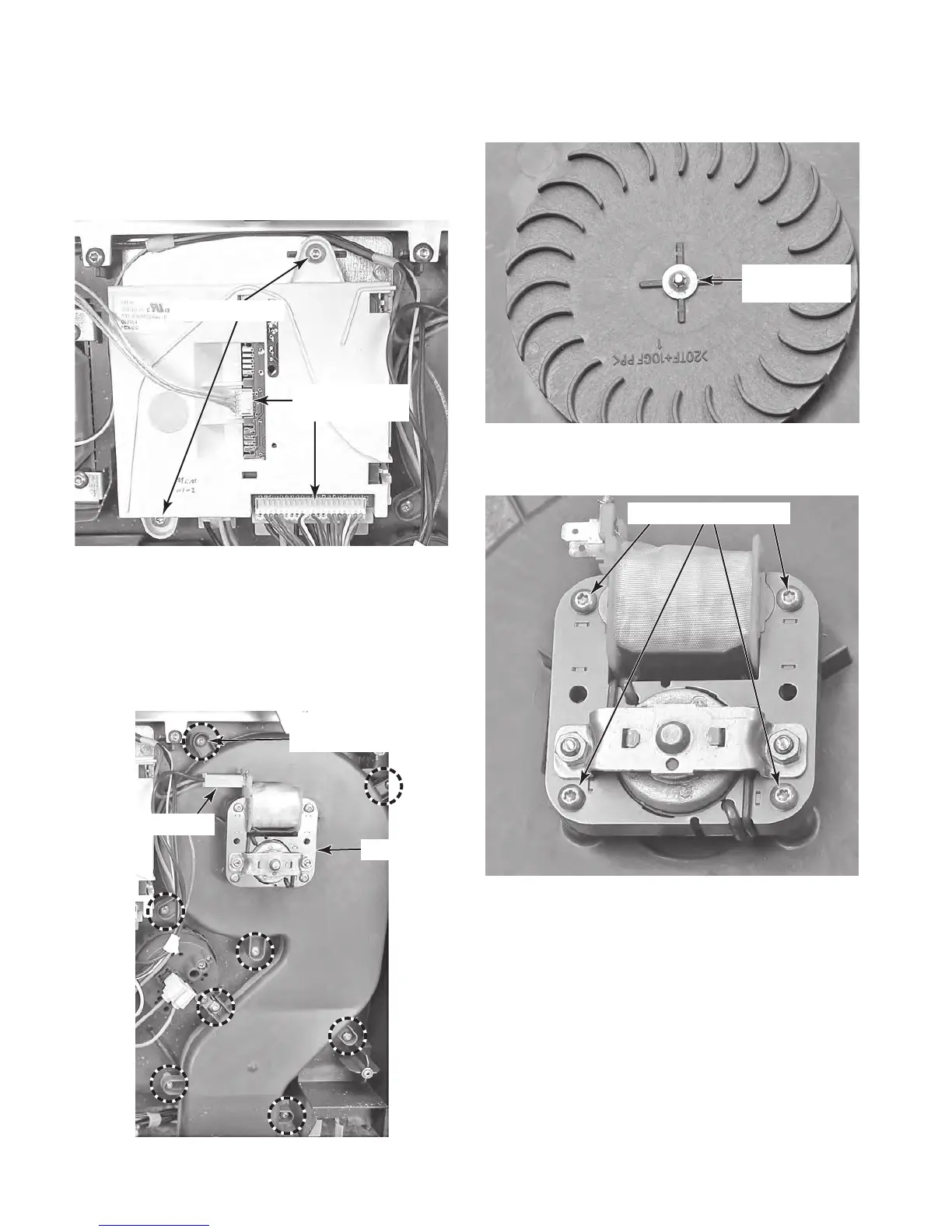

8. To remove the Main Control Module:
a) Disconnect the wiring connectors from
the module terminals.
b) Remove the two screws from the mod-
ule and remove the module.
Module Wiring
Connectors
Module Screws
9. To remove the Dry Fan:
a) Disconnect the wiring connectors from
the dry fan terminals.
b) Remove the eight screws from the fan
shroud and remove the shroud and
dry fan.
Fan Shroud
Screws (1 of 8)
Dry Fan
c) Remove the push clip from the blower
wheel and remove the wheel.
d) Remove the four screws from the dry
fan and remove the fan.
Blower Wheel
Push Clip
Dry Fan Motor Screws
Wiring Connectors
To Next Page
