2-9

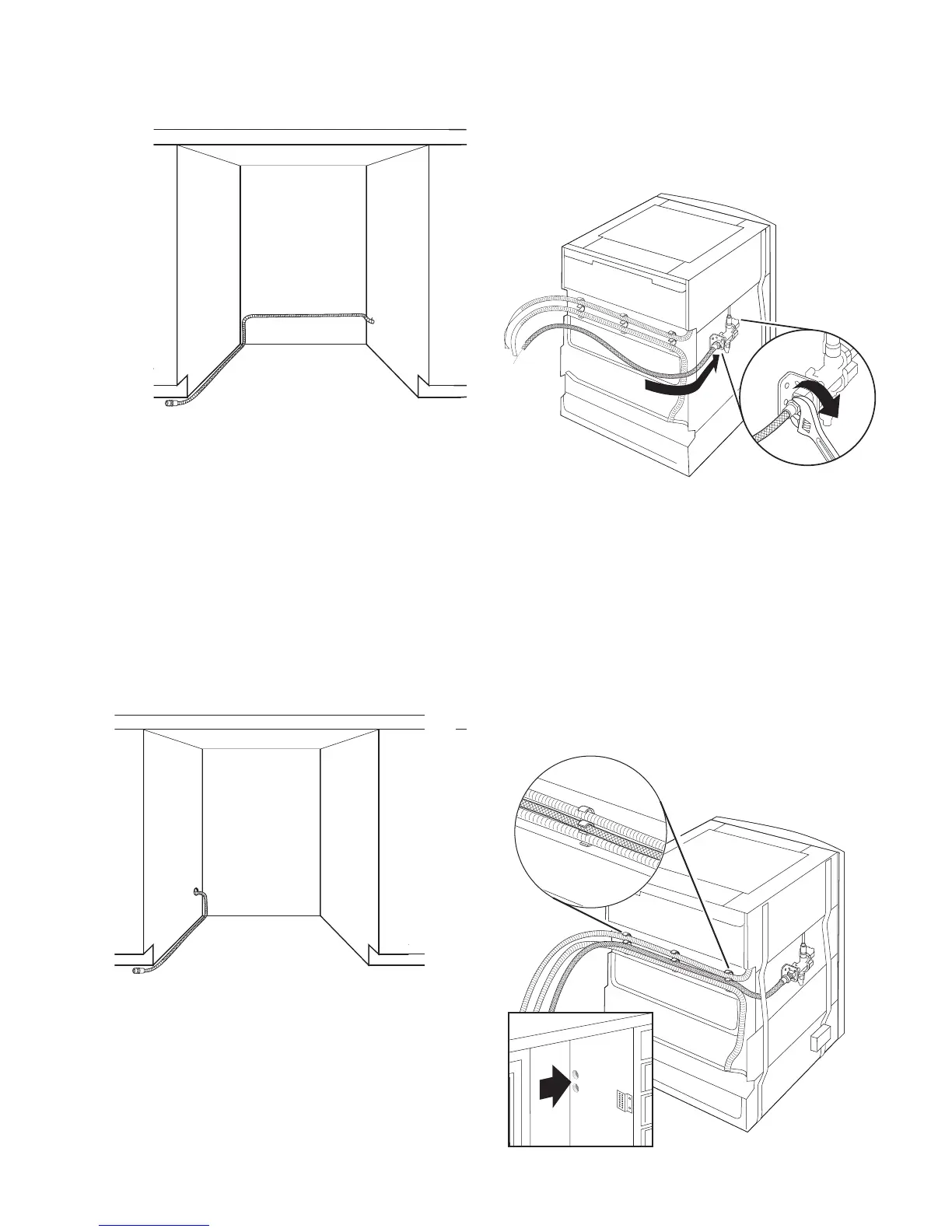

Option 1: Right-hand side utility route
After routing the electrical wire through the
right-hand hole, attach the wire to back left-hand
side of cabinet wall 8" (20.32 cm) above the
oor.Thencontinueroutingthewirealongthe
left-hand side of cabinet opening to the front
of the opening.
Option 2: Left-hand side utility route
Route wire through 1½" (3.81 cm) hole located 8" (20.32 cm) above
the oor.
After routing the electrical wire through the
left-hand hole, continue routing the wire along
the left-hand side of cabinet to the front of the
opening.
Route Water Supply Line and Drain Hose
1. Connect water supply line to water valve
on dishwasher.
Route wire through 1½" (3.81 cm) hole located 8" (20.32 cm) above
the oor.
2. Route water supply line and drain hoses
based on your cabinet requirements.
Option 1: Right-hand side utility
access
For right-hand routing, water supply and •
drain hoses are shipped in the correct
position. Place the water supply line in
the clip as shown.
