KitchenAid Pro Line KHEV01RSS - Component Access; Component Locations

4-1
COMPONENT LOCATIONS
This section instructs you on how to service each component inside the Pro Line
®
Front-Loading
Gas and Electric Dryers. The components and their locations are shown below.
COMPONENT ACCESS

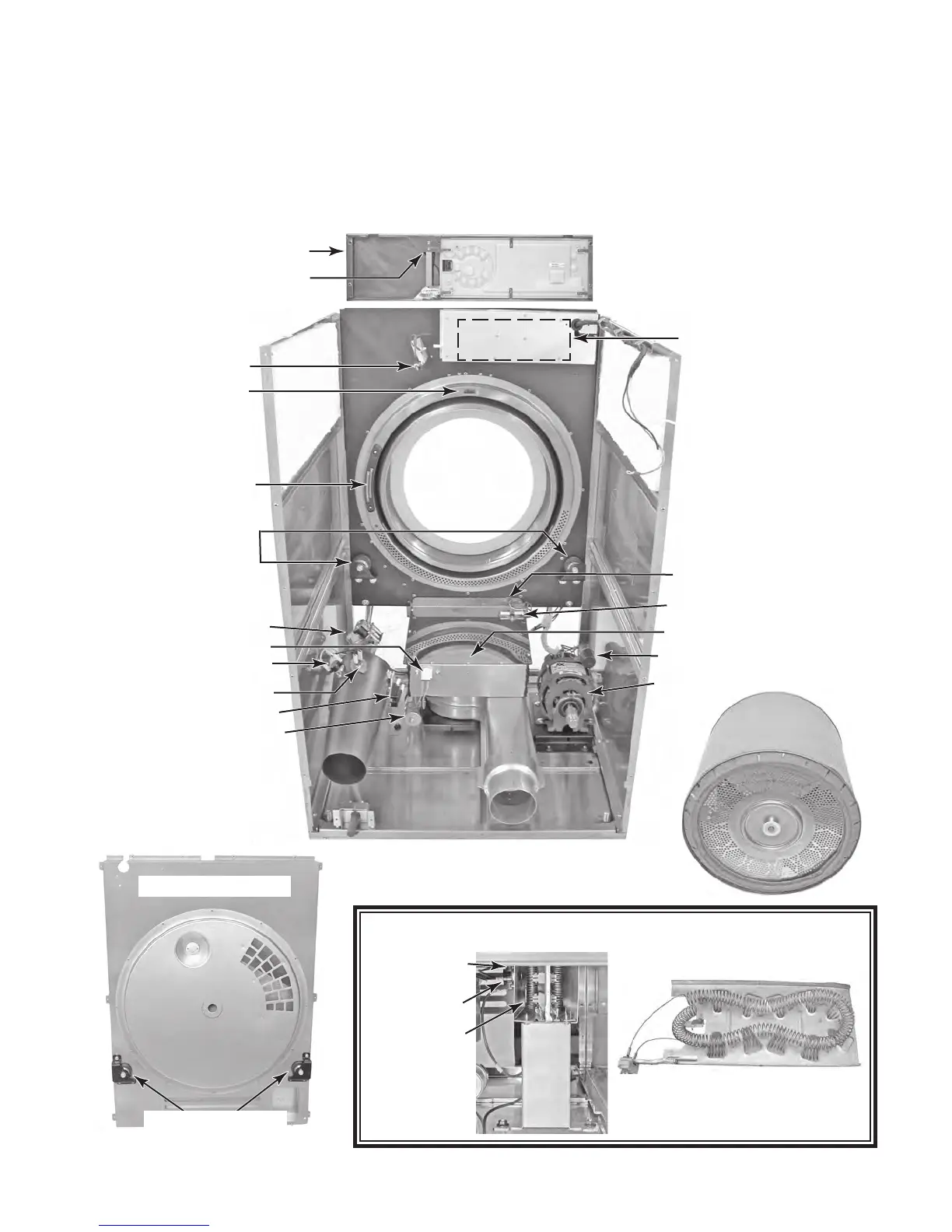

Electric Heater Components (Front View)
Flame Sensor
User Interface
Door Sensor
Drum Rotation Sensor
Front Drum Rollers
Gas Burner Assembly
Blower Motor
Blower Capacitor
Exhaust High Limit Thermostat
Drive Motor
Motor Capacitor
Moisture Sensor
Lint Filter Switch
Drum
Rear Support Panel
Viewed From the Rear Of The Dryer
Temperature Sensor
Control Board
Drum Light
High Limit Thermostat
Rear Drum Rollers
Thermal Cutoff (TCO)
High Limit
Thermostat
Thermal
Cutoff (TCO)
Heater Elements
(One Side Shown)
Elements
