KitchenAid Pro Line KHEV01RSS - Troubleshooting Guide

6-5
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
WARNING

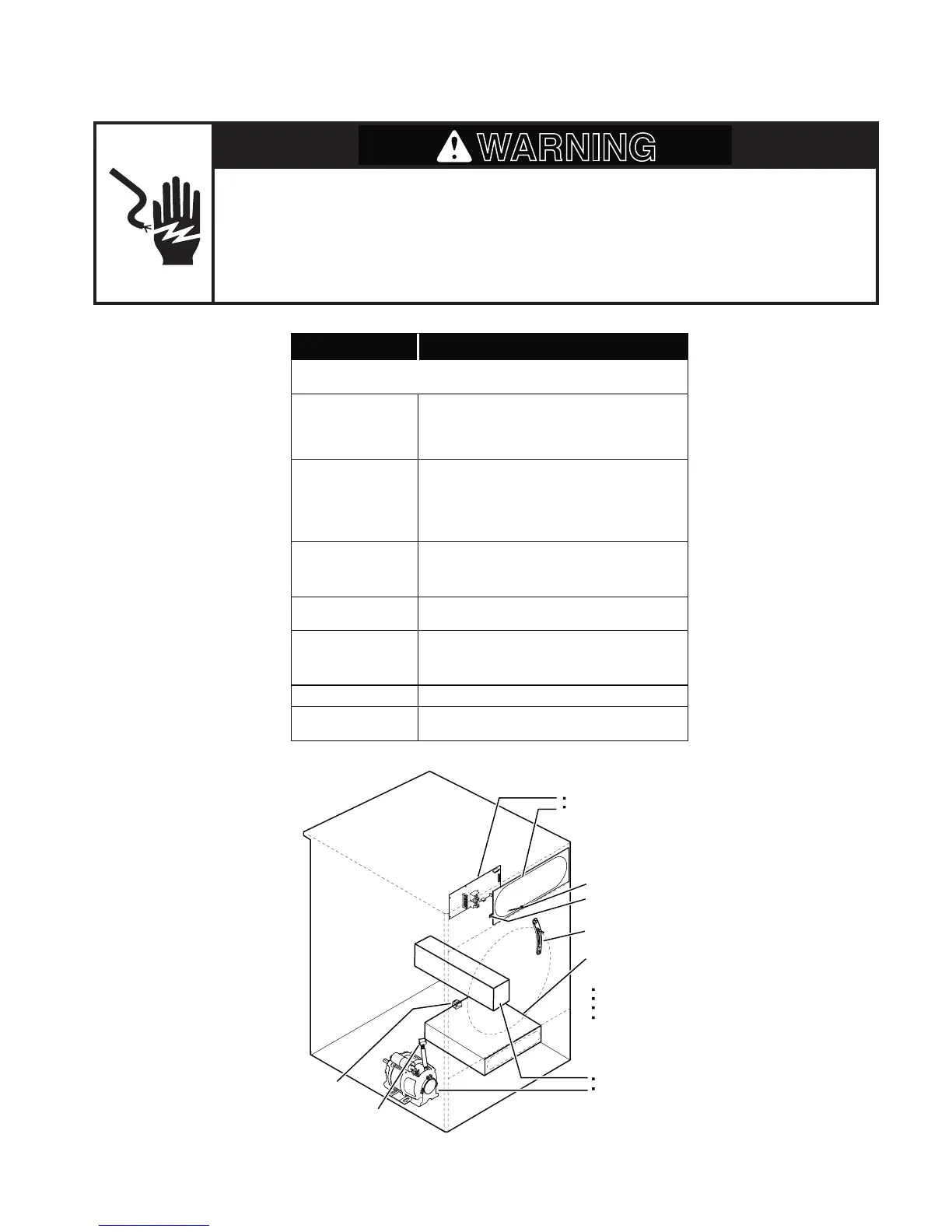

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE / TEST
NOTE: Possible Cause/Tests MUST be performed in the sequence shown for each
problem.
WON’T POWER UP.
(No response when
Control On button is
pressed.)
1. Supply connections. See TEST #1.
2. Check harness connections.
3. User interface assembly.
See TEST #5.
WON’T START CYCLE
WHEN START BUTTON
IS PRESSED.
1. If number display flashes, check to be sure the
door is completely shut, and press and hold down
Start for about 1 second.
2. See TEST #2.
3. See TEST #6.
WON’T SHUT OFF
WHEN EXPECTED.
1. Check Pause/Cancel button. See TEST #5.
2. User interface assembly.
See TEST #5.
3. Moisture Sensor. See TEST #4.
CONTROL WON’T
ACCEPT SELECTIONS.
User interface assembly.
See TEST #5.
WON’T HEAT.
1. Heater. See TEST #3.
2. Check harness connections.
3. Check installation.
HEATS IN AIR CYCLE.
Temperature sensor. See TEST #3a.
SHUTS OFF BEFORE
CLOTHES ARE DRY.
Moisture sensor. See TEST #4.
Machine Control Electronics
User Interface Assembly
Door Switch Cable
Moisture Sensor
See Removing the
T
oe Panel to access:
Heater Assembly
Drive Motor
See Accessing & R
emoving
to access:
the Blower Assembly
Temperature Sensor
Exhaust High Limit
Lint Drawer Switch
Blower Motor
See Accessing &
Removing
the Electronic Assemblies to access:
White Motor
Connector
Lint Drawer
Switch
Door Switch
Figure 2. Component locations
