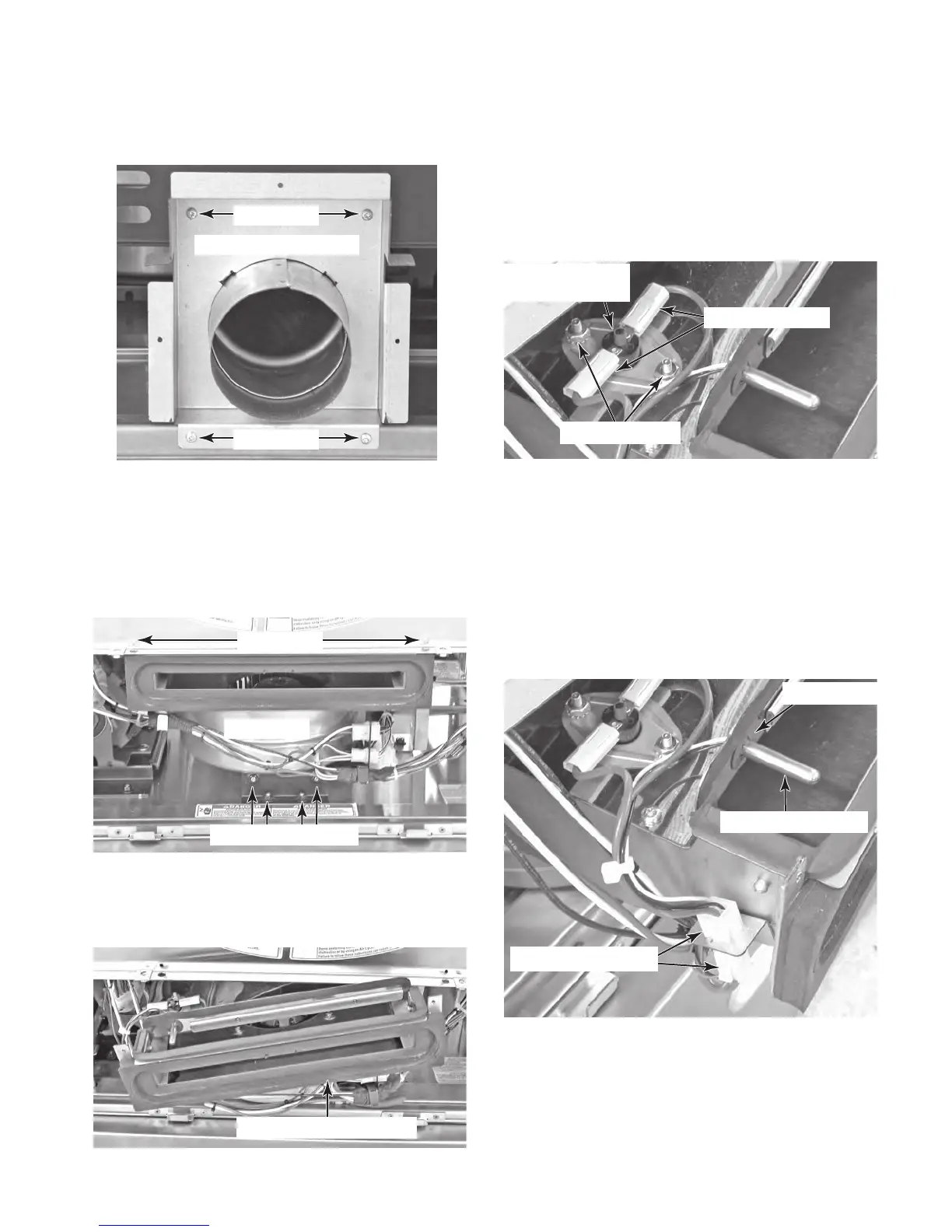

9. Remove the four T-20 screws from the
exhaust vent bracket and pull the bracket
off the vent.
Exhaust Vent Bracket
2 Screws
2 Screws
10. Remove the two T-20 screws from the top
blower screws.
11. Remove the four 7/16˝
nuts from the blower
bracket, push the bracket back so it clears
the two chassis studs, and remove it from
under the blower.
2 Screws
Blower
Blower Bracket Nuts
12. Pull the blower down and forward as far
as necessary to access the exhaust high
limit thermostat and temperature sensor.
13. To remove the exhaust high limit ther-
mos
tat:
a) Disconnect the two connectors with the
red-silver wires from the terminals.
b) Remove the two nuts from the exhaust
high limit thermostat and remove the
thermostat.
Blower Down & Forward
Red-Silver Wires
2 Mounting Nuts
Exhaust High
Limit Thermostat
14. To remove the temperature sensor:
a) Unlatch and disconnect the tempera-
ture sensor connectors from the mount-
i
ng bracket.
b) While holding the round clip with a pair
of pliers, turn the temperature sensor
with your fingers, and push it out of the
clip.
Round Clip
Sensor Connectors
Temperature Sensor
To Next Page
