KITO TCR Series User Manual

23
3.10 Optional Chain Container
3.10.1 For installation of the optional bag style chain container refer to Figure 3-5 below and perform the
following:
 Make sure all end stoppers and limit locks are installed correctly. See Sections 3.12 and 7.3.
 Torque all fasteners to the values shown.
 Feed the chain into the chain container beginning with the free end. Take care to avoid twisting or
tangling the chain.
 Do not use the chain container if any parts are damaged or if any fasteners/hardware are missing.

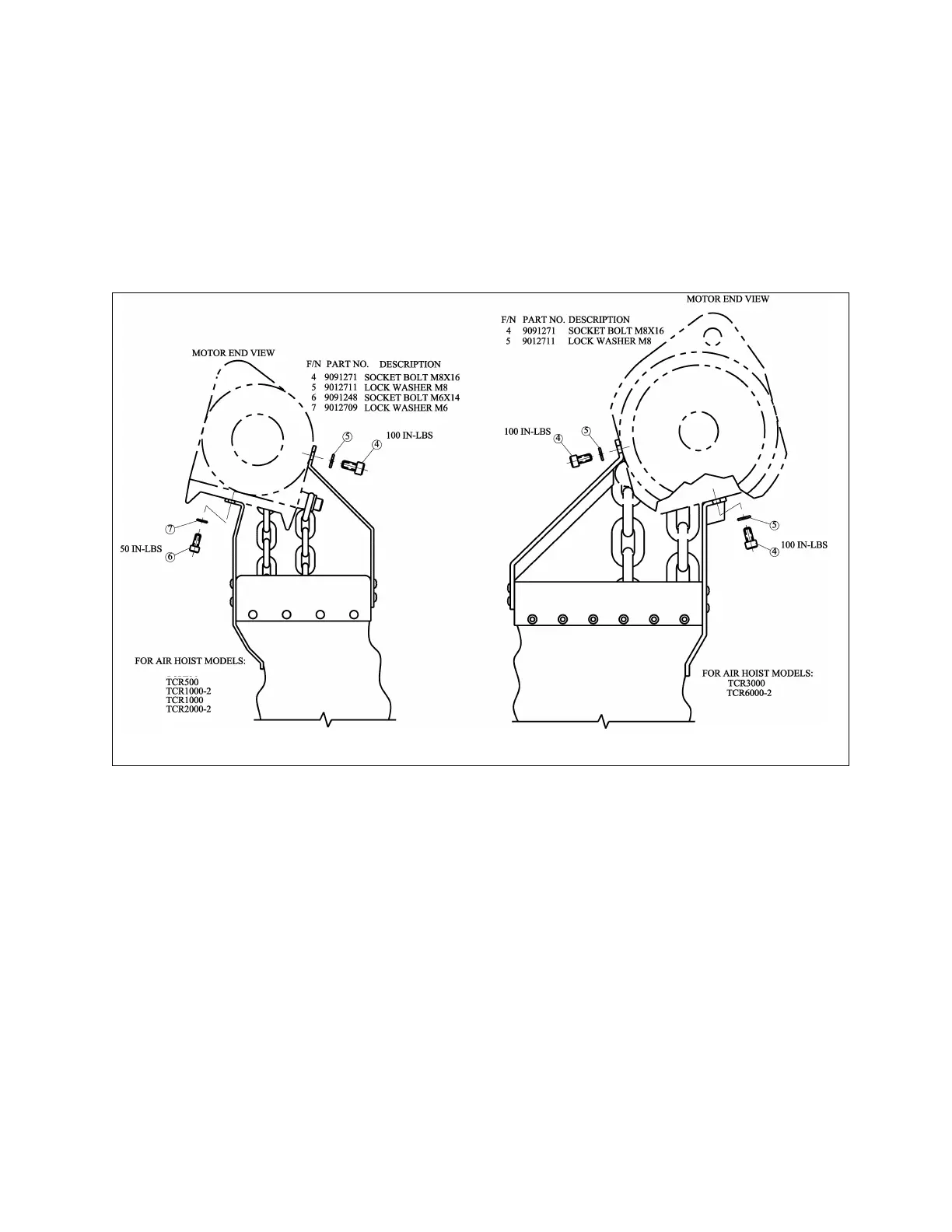

Figure 3-5 Optional Chain Container Installation

KITO TCR Series Specifications

General

Brand	KITO
Model	TCR Series
Category	Chain Hoists
Language	English
