KITO TCR Series User Manual

31
4.3 Hoist Controls
4.3.1 Pendant Control - When using the pendant control depress the up lever to raise the hoist or the down
lever to lower the hoist as shown in Figure 4-1 below. To stop motion release the lever switches.

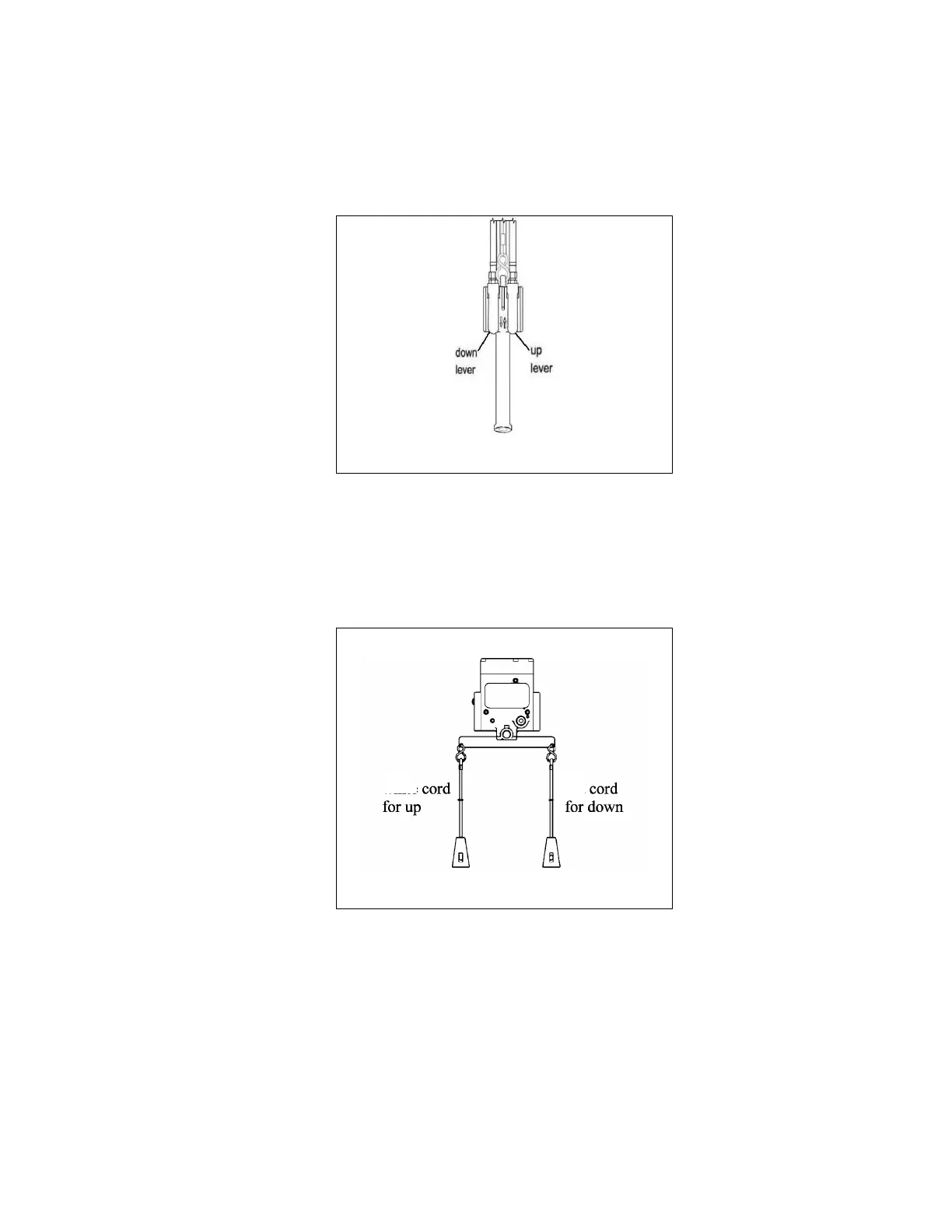

Figure 4-1 Pendant Control
4.3.2 Cord Control - When using a hoist with cord control, pull down on the appropriate cord to raise or lower
the hoist. Release the cords to stop the hoist. Refer to Figure 4-2 below.
F
Figure 4-2 Cord Control
4.3.3 CAUTION! Make sure the motor completely stops before reversing direction.
4.4 Adjusting the Controls
4.4.1 For pendant control, the speed can be adjusted by the amount the lever is depressed. As shown below
in Figure 4-3, by depressing the lever slightly, you will be able control the hoist’s motions slowly and
with more precision. By depressing the lever further, the speed of the hoist will be increased until the
lever is fully depressed.
