7.4 Load Sheave Inspection
7.5.1 Perform this inspection by removing the chain separator and viewing the load sheave while operating
the hoist slowly, with no load, and in accordance with Section 4 “Operation”. Refer to Figure 7-8 and
remove the chain separator as follows.
 TCR3000 and TCR6000-2: The chain separator can be removed by removing the shaft retaining
ring from its groove on the limit lever shaft adjacent to the valve section, sliding the limit lever
assembly away from the chain separator, and removing the two larger outboard hex socket screws
holding the chain separator to the hoist body.
 TCR500 through TCR2000-2: The chain separator can be removed by removing the shaft
retaining ring from its groove on the limit lever shaft adjacent to the valve section, sliding the limit
lever assembly away from the chain separator, removing the limit lever from the limit lever shaft,
and removing the hex socket screws holding the chain separator to the hoist body.

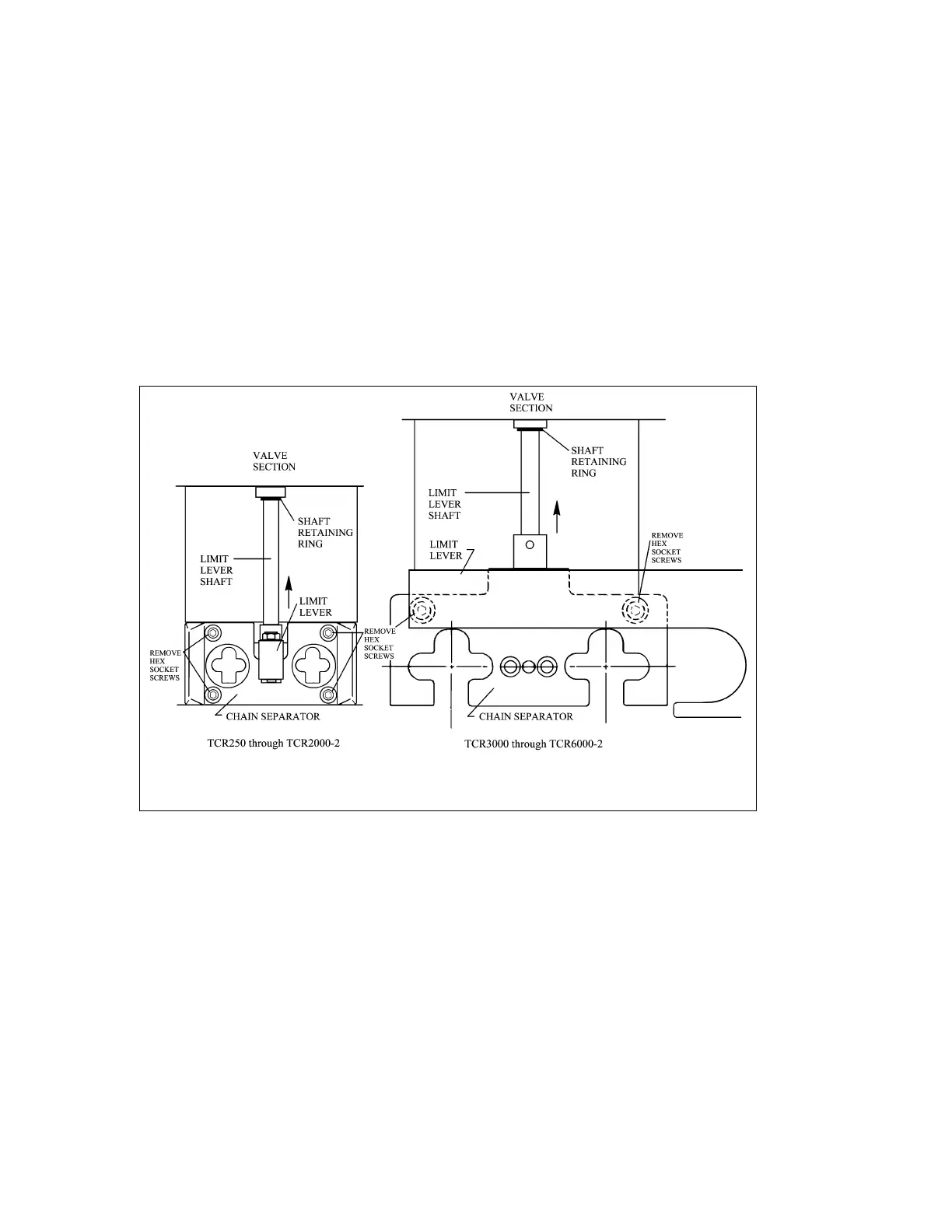

Figure 7-5 Chain Separator Removal
