KITO TCR Series User Manual

24

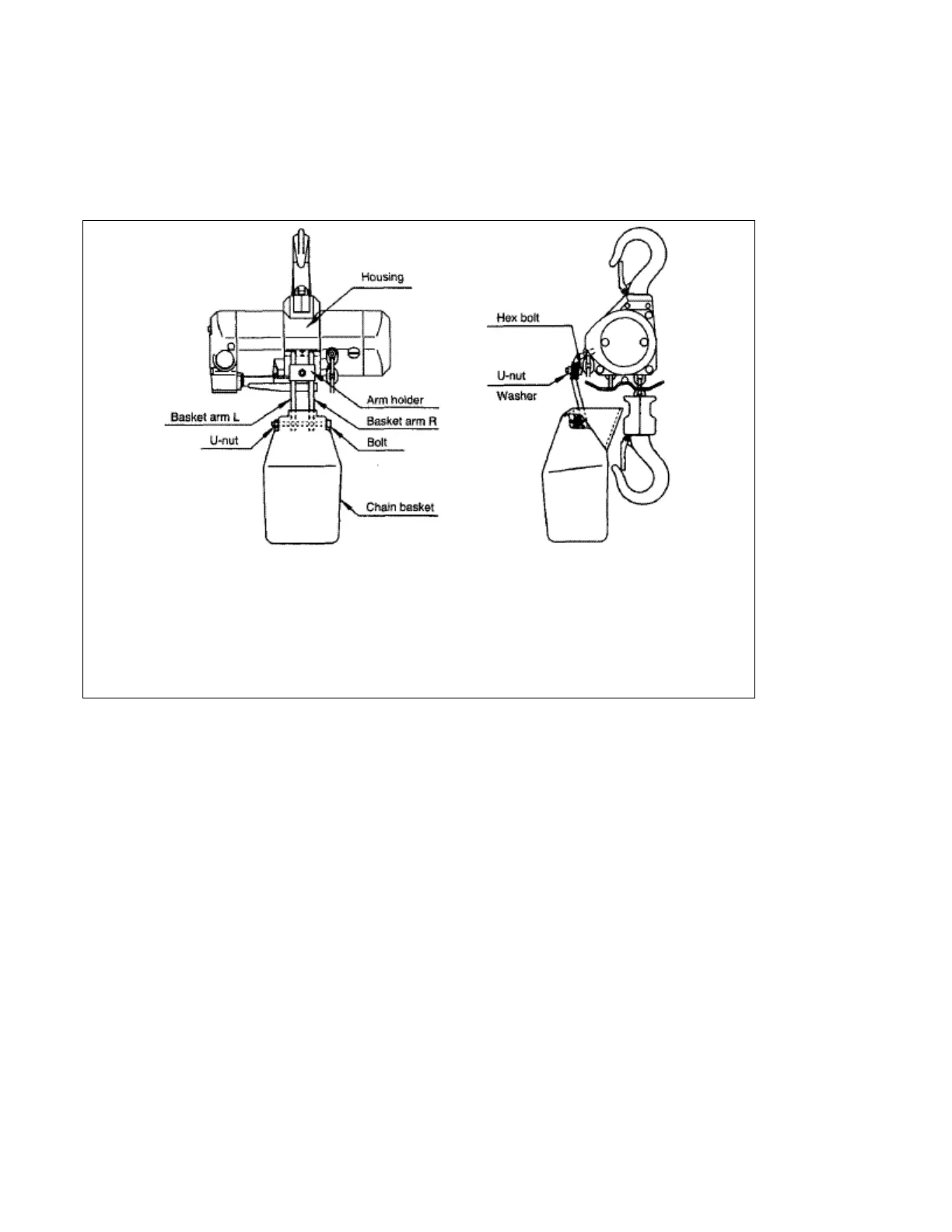

Method of Setting The Chain Basket For TCR250
 Put the basket arm into the housing front and fix them securely with the arm holder using bolts and nuts
as it is shown below.
 Set the chain basket on the basket arm as it is shown below.
3.11 Non-Stationary Application
3.11.1 For applications such as rental fleets or construction sites where the hoist is moved from place-to-
place, a filter and lubricator are still required. Consult factory for recommended methods.
3.11.2 Connections and fittings must be kept clean and care taken to prevent dirt, debris and moisture from
entering the hoist.
3.11.3 Recommended practice for removing the hoist from an installation:
 Run the hoist briefly with well lubricated air
 Disconnect the air supply line
 Inject a small quantity (approximately 20 drops) of oil into the hoist’s inlet port
 Plug the inlet port
