KITO TCR Series User Manual

47
7.5 Pendant

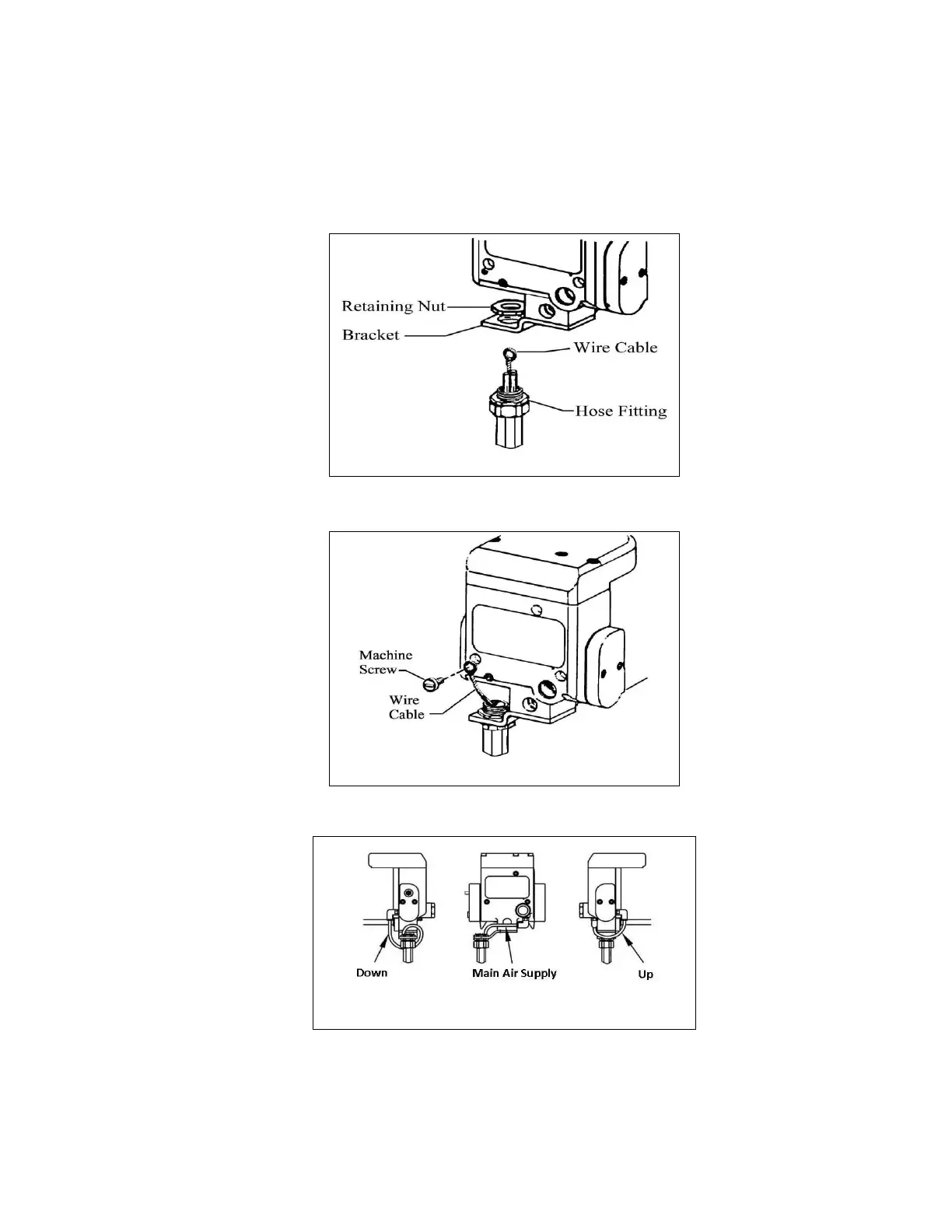

7.3.1 The following procedure covers the installation of a pendant control station.
1) Put 3 red tubes and wire through the bracket hole. See Figure 7-6.
2) Attach the hoses to the bracket by installing the retaining nut to the fitting.
3) Torque retaining nut to 20 lbf.-ft.
Figure 7-6
4) Attach the wire cable to the hoist valve body with the screw as shown in Figure 7-7.
5) Torque machine screw to between 30 and 40 in-lbf.
Figure 7-7
6) Attach the 3 red hoses to each nipple as shown in Figure 7-8. Main air supply, lifting and
lowering.
Figure 7-8
NOTICE! When attaching the hoses take care not to bend or kink tubing. This will result in the air flow
being restricted and poor response to the pendant controls.
