KITO TCR Series User Manual

45
6) WARNING! Make sure end stoppers and limit locks are installed in accordance with
Table 7-1 and the diagram in Figure 7-4.
7) Ensure that chain remains free of twists when attaching dead end(s) of chain and when feeding
chain through bottom hook case (double fall units). Refer to Figures 3-6 and 3-7.
8) After installation has been completed, perform steps outlined in Section 3.12 "Preoperational
Checks and Trial Operation".

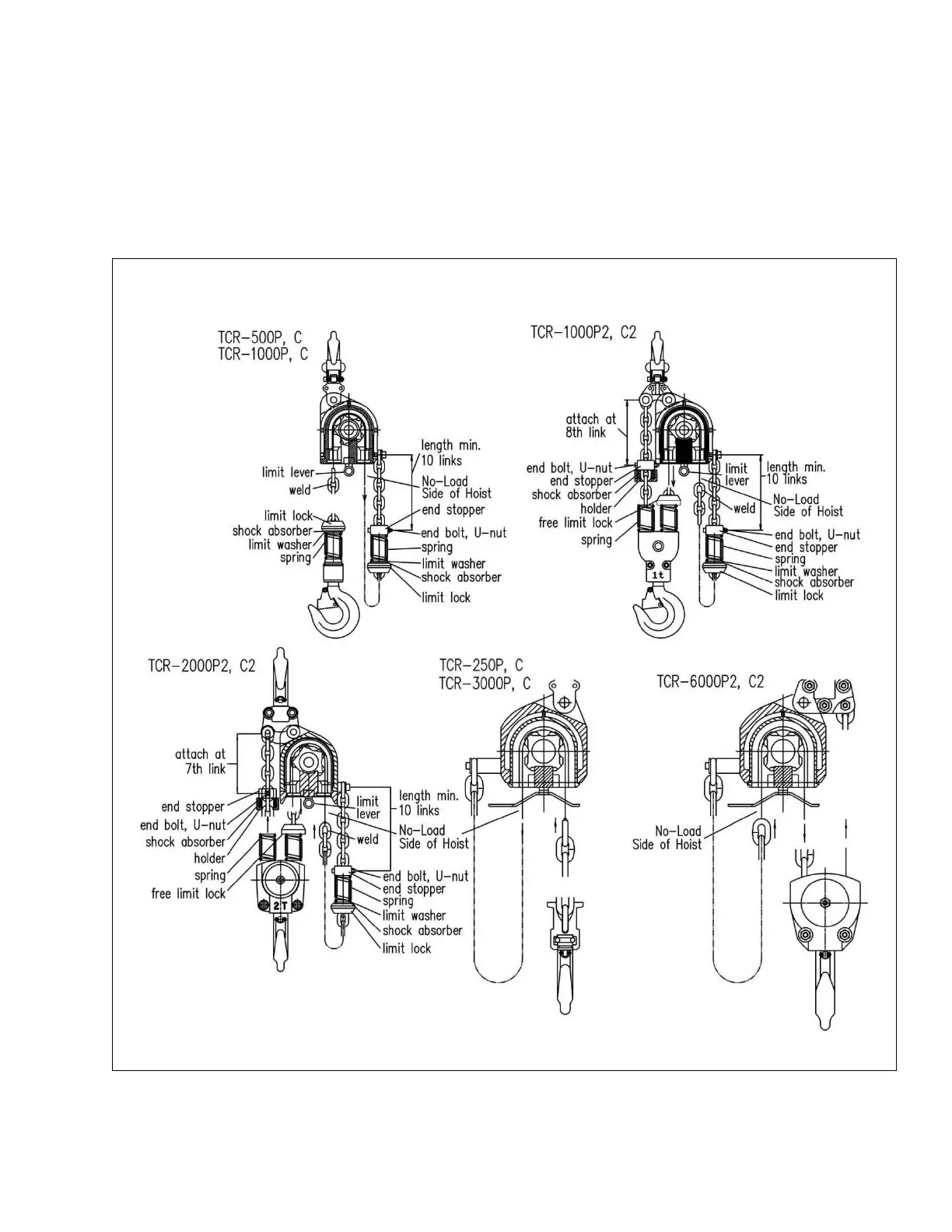

Figure 7-4 Diagram showing chain replacement guide
