4) CAUTION! Invert the hoist such that the chain separator openings are facing up. The chain
must be inserted into the chain separator on the no load side opening. This is where the no load
end of chain attaches to hoist body. Without inserting the load chain, operate the hoist pendant or
cord control to determine which direction the load sheave is rotating in relation to the pendant
control function pressed or pulled. Install load chain into the hoist making certain the first link is a
standing link and that its weld is facing away from the centerline of the hoist. See Figures 7-3 and
7-4 below.

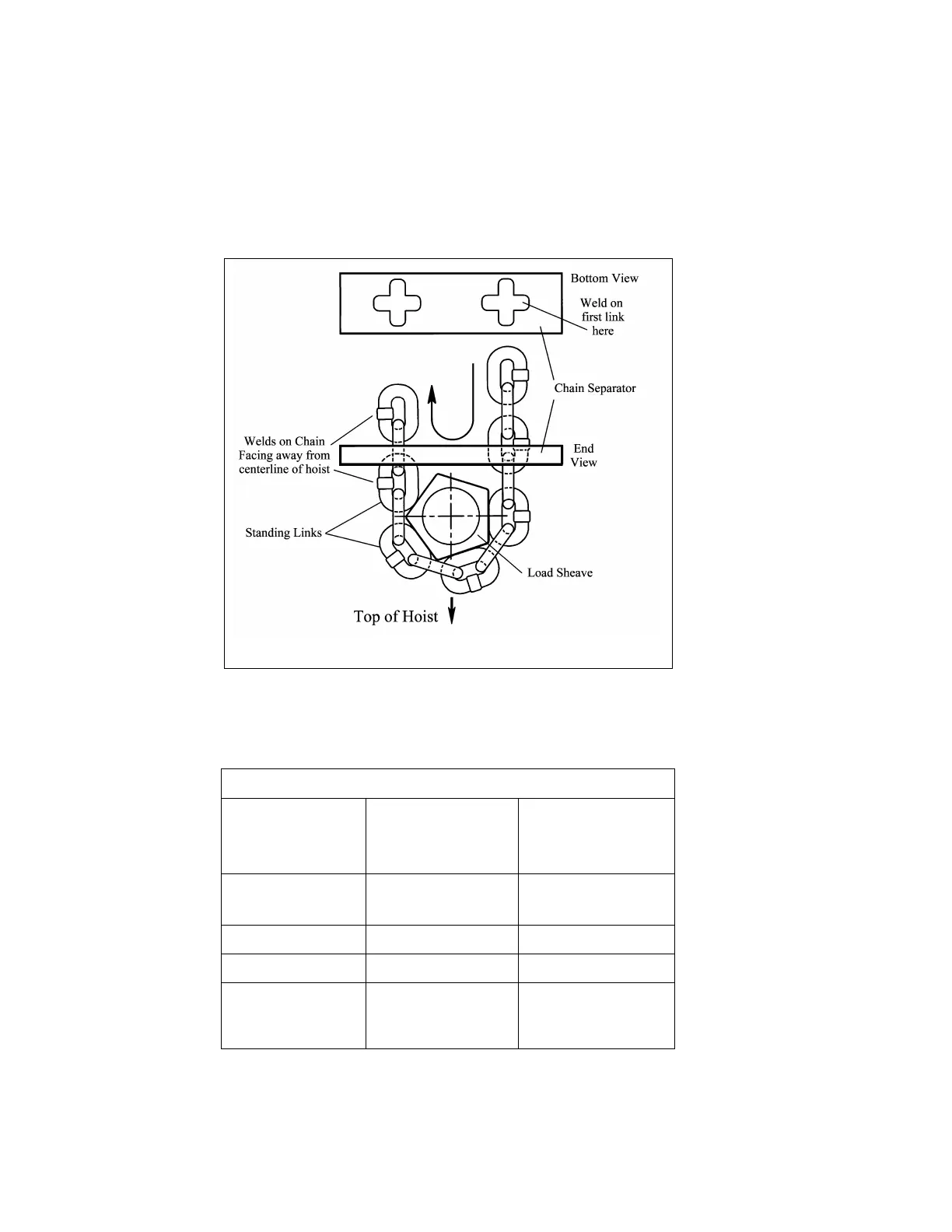

Figure 7-3 Load Chain Installation Diagram
5) CAUTION! Operate the hoist slowly to catch and pull the chain through the hoist. Make sure
the chain feeds smoothly while operating the hoist. If binding occurs, stop and reverse the hoist
direction to back the chain out. Reinsert the chain while gradually operating the hoist controls.
Continue until sufficient quantity of chain is fed through the hoist.
Table 7-1 Placement of Stoppers from end of Load Chain
TCR250P, C
TCR3000P, C
TCR6000P2, C2
