Digital Astronomic Timer
In this tab, Meastro’s Prayer Settings can congure.
The calculation metod/shadow angle and delay times are set according to the position.
Prayer Settings will be set as follows,
Click ‘New’ and the buttons are activated.
Calculation Method / Shadow Angle: The name of the region is selected where device is working.
When ‘Custom’ select Fajr and Isha Angle will be congurable. For other region, interface directly sets
the value. Shadow angle can be set to 1 ° and 2 °
Delay Time: Fajr-Dhuhr-Asr-Maghrib-Isha delay times are written by user.
After entering the values, click on ‘Save’ button. User can write all prayer settings on Meastro-RS 485.

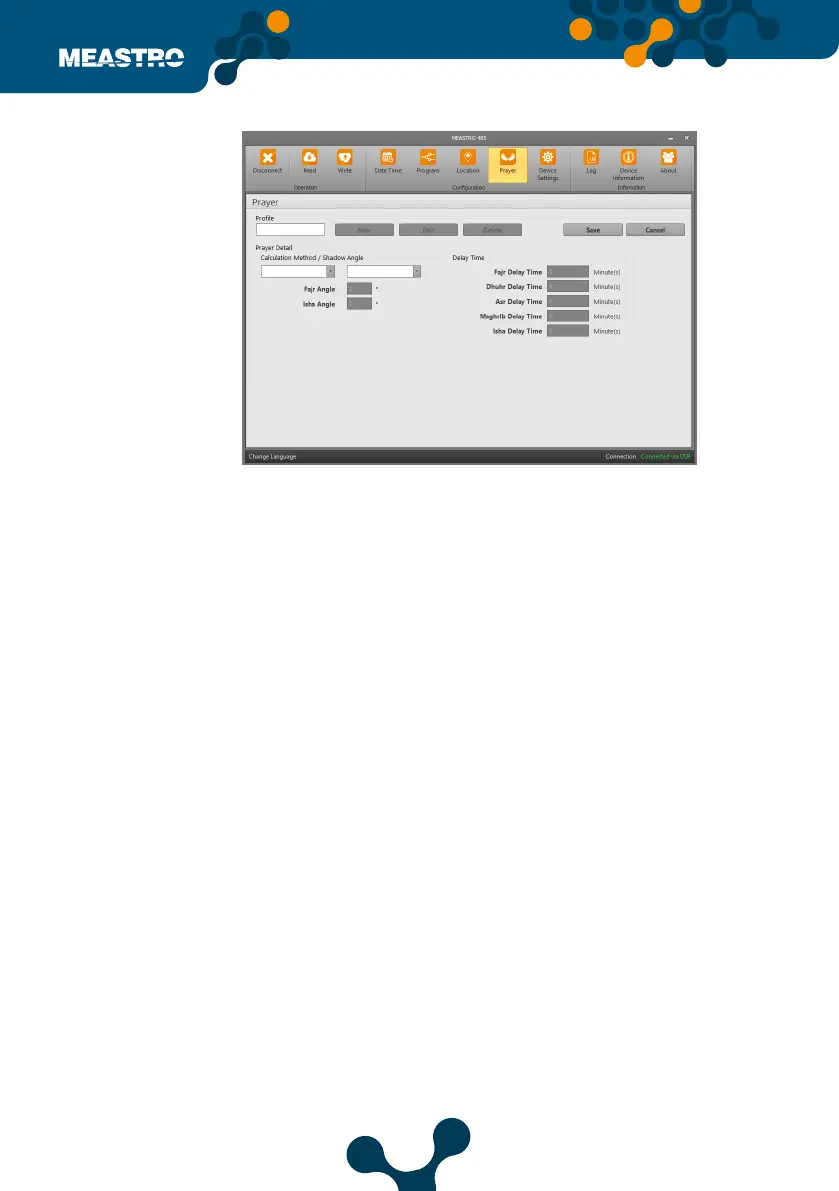

Figure 5-29 Meastro User Interface Program Prayer Tab
