Digital Astronomic Timer
Communication
It is the section where the communication settings of the device are made.
Commands
Relay control via the interface is provided in the Commands section.
Operation Mode: Automatic mode, control of Relay 1 (C1) and Relay 2 (C2) buttons is automat-
ically adjusted.
Manual mode is selected, Relay 1 (C1) and Relay 2 (C2) are controlled by user.
Note: When the user wants to change the relay position, the interface program directs the
conrmation question to get the approval.
In this tab, there are recordings of Meastro-RS485 Log event.
Events performed with Meastro-RS485 are transferred to Excel le with description and time
information.
If there is no event logging on the device, the event description in the interface appears empty.

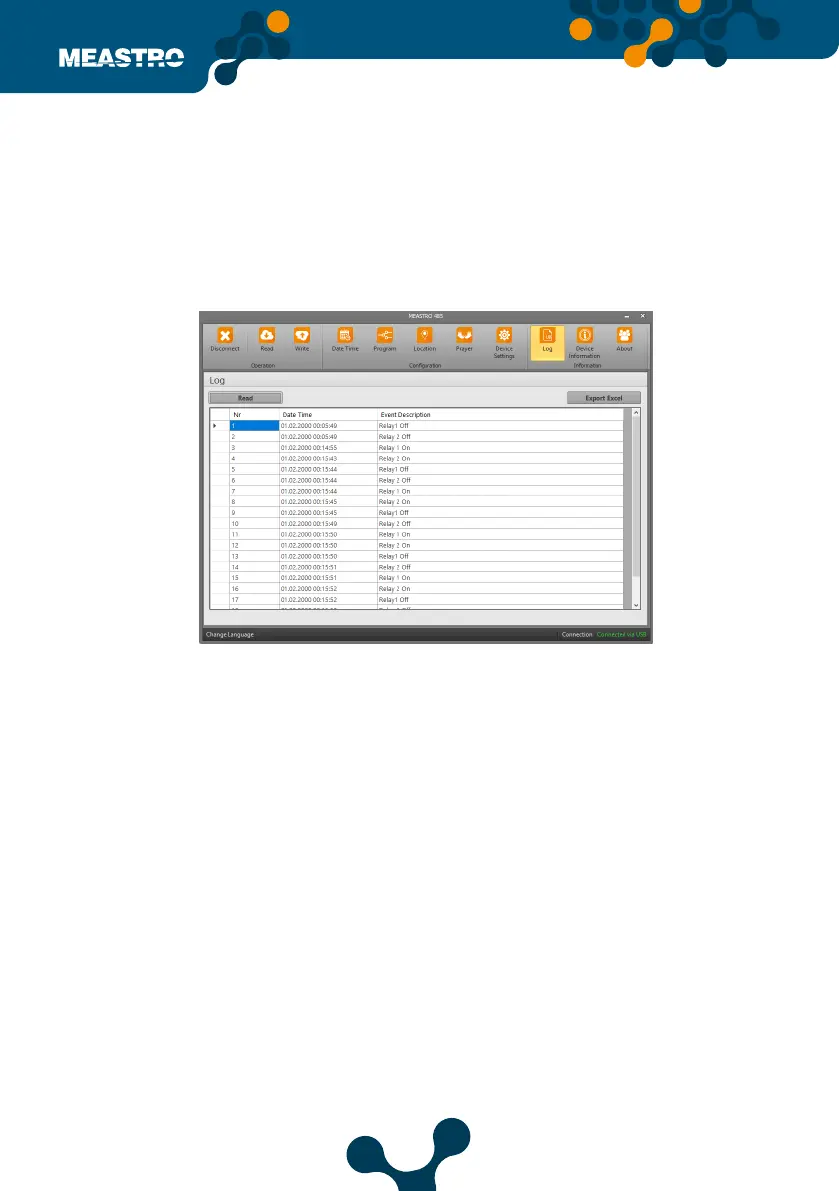

Figure 5-31 Meastro User Interface Program Log Tab
