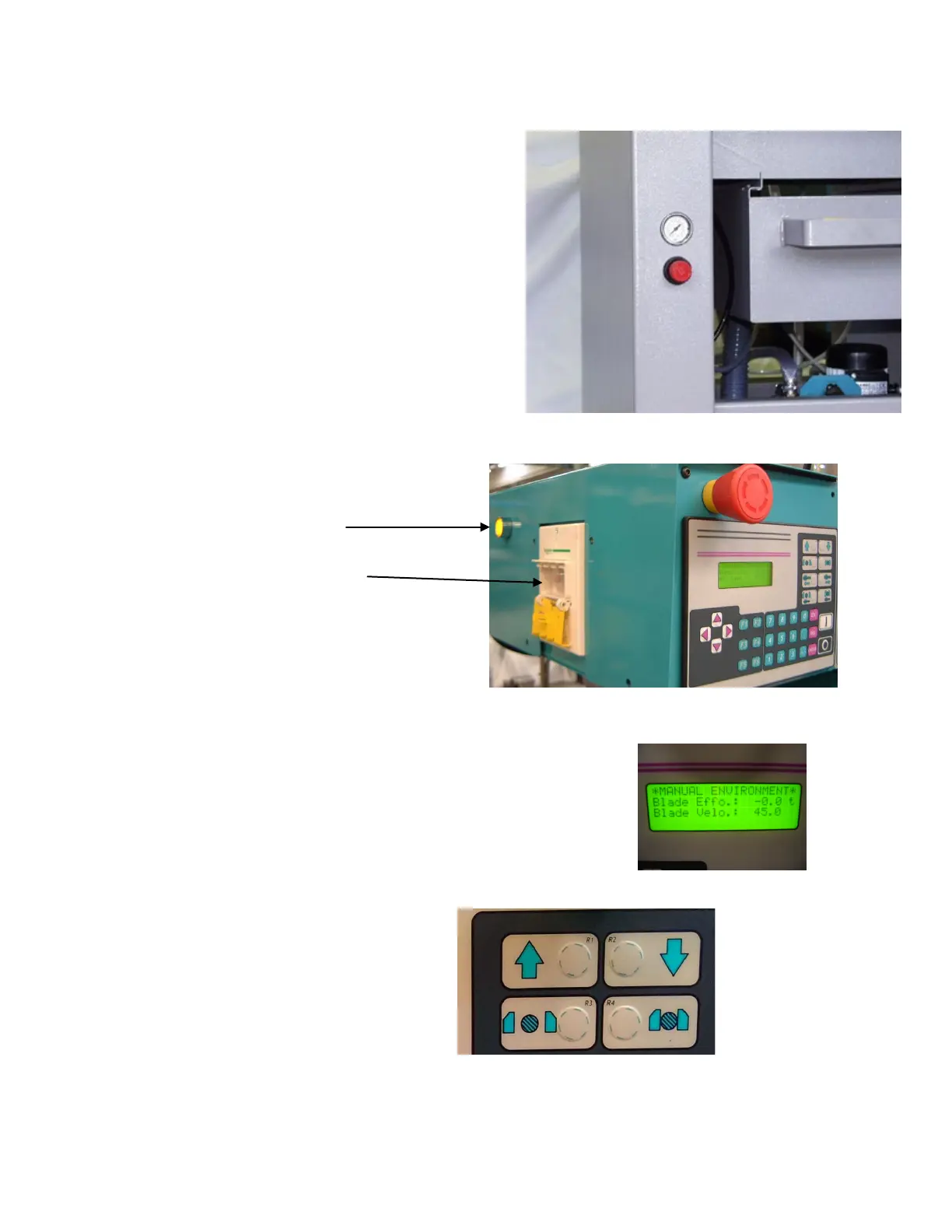

Variable Vise Clamping Pressure
Vise clamping pressure may be adjusted to prevent
distortion of tubing or structural materials. Adjustment is
made at the regulator on the machine base (inside door)
and registered on gauge. Adjust for maximum pressure
without distortion.
Caution: Pressure must be sufficient to prevent material
from turning in the vise, or damage to blade may occur.
Note that the knob is a locking knob. To unlock, pull out.
To lock, push in.
POWER UP
The power disconnect switch is located at
end of machine. Push RH button to power
up machine.
Push the yellow System Start button (to the left of disconnect switch), and it will
illuminate.
Nothing will operate if the yellow button is not on.
View of display when power is on
Start Pneumatics
Push F3
Operator Functions
Sawframe raise & lower
Sawvise clamp & unclamp
The lower 4 buttons in this group are not used
