Operating the machine
Quick Start Operation
POWER ON SWITCH
SYSTEM START BUTTON
F3 - PNEUMATIC START
CLAMP SAWVISE ON MATERIAL
CLOSE FEED SPEED VALVE
PUSH CYCLE START
ADJUST COOLANT VALVE
OPEN FEED SPEED VALVE UNTIL
YOU REACH DESIRED RATE
BLADE SPEED
Increase A Decrease V
Up & down arrows, for blade speed increase/decrease
The machine display will read as illustrated at the right
Blade Effo 2.4 is the amperage of the drive motor
Blade velo Blade rpm
ARC lowering indicates the sawframe is moving down

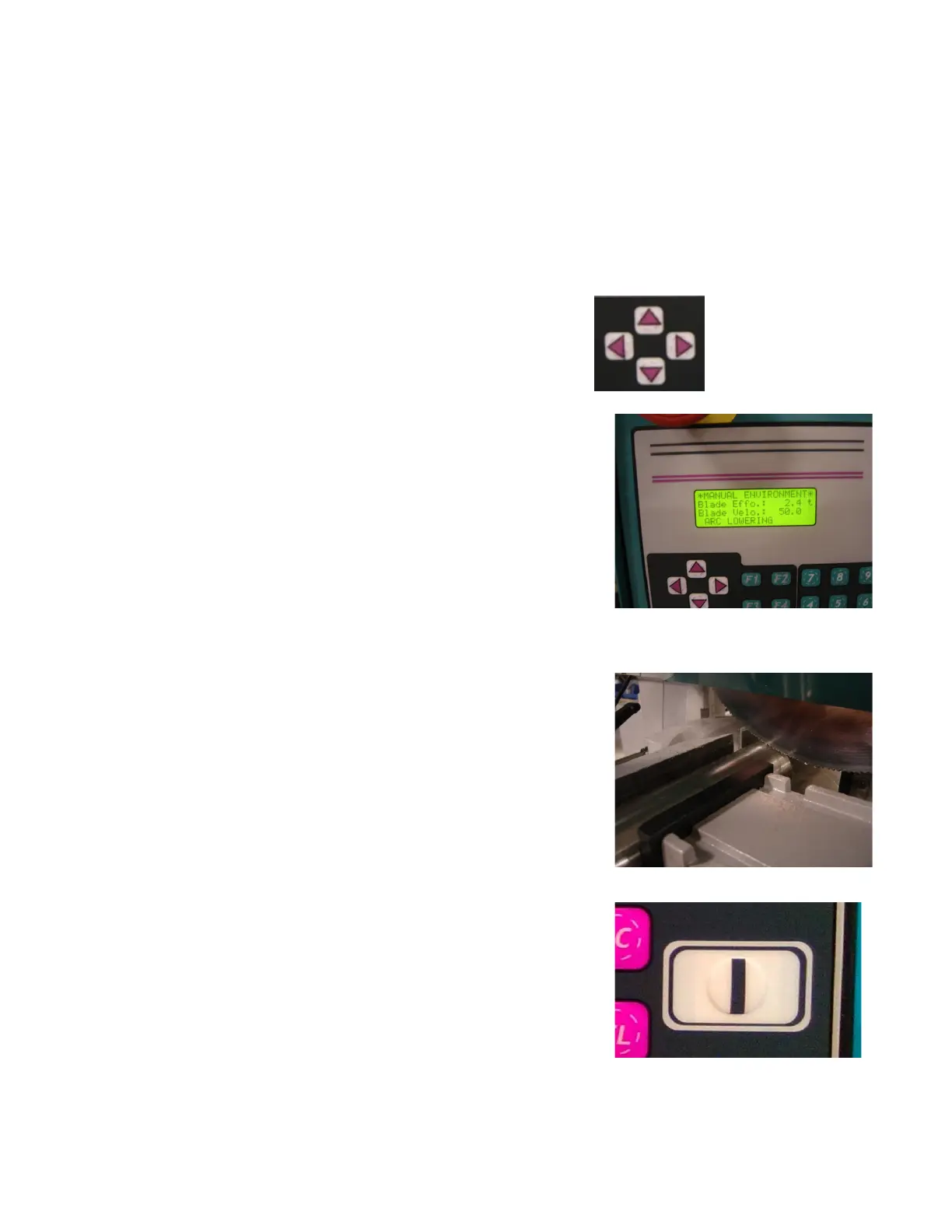

Detailed Explanation
Operation is quick and simple. We suggest you run a test cycle to set
your blade speed, downfeed rate, blade brush, and coolant flow.
Raise sawframe to the starting position desired via the UP arrow (top
left)
When the sawblade clears the workpiece as shown, clamp your
material in the sawvise to make sure the workpiece is securely
clamped.
Push the
Cycle Start button to start sawing cycle.
The sawblade will make one cut and return automatically to the
starting position.
