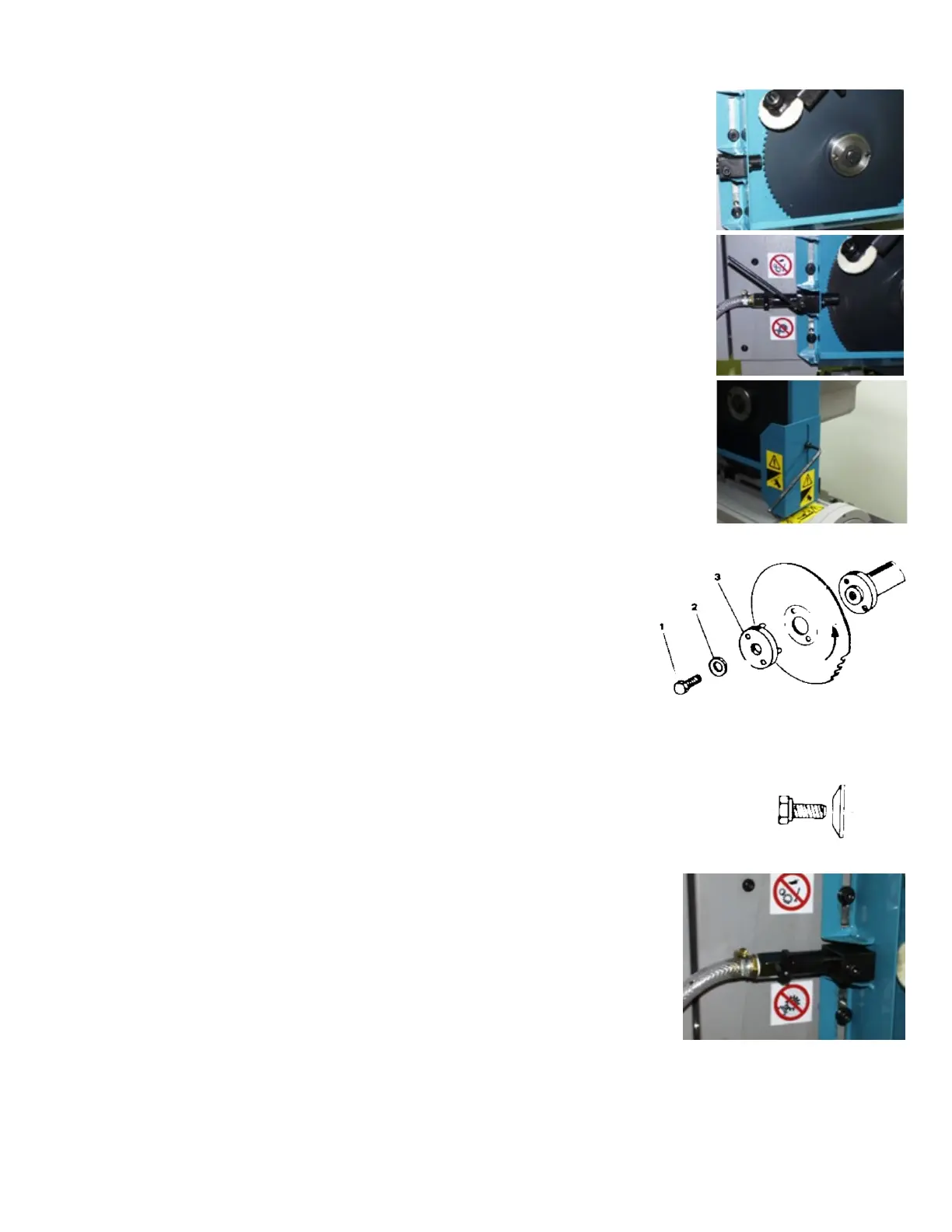

BLADE INSTALLATION
Please refer to the section on BLADE SELECTION to select proper blade.
Saw frame should be positioned as illustrated. Spindle bolt & coolant nozzle should
be in line as shown at right.
Loosen coolant nozzle with hex wrench as illustrated, and move to left to allow
installation of blade.
Loosen socket cap screw on front of blade guard with hex wrench, slide removable
guard up until it releases, and remove guard. This will allow removal of plexiglass
cover.
-Remove spindle bolt, spring washer, and flange (items 1 thru 3).
-Insure that the spindle, outer flange, and blade are clean and free of dirt
and oil.
-Mount the blade with the teeth pointing in the direction
of the arrow
- Mount the flange, spring washer (high side to the outside, seated
properly) and the locking bolt.
Important: Prior to finally tightening the bolt, rotate the blade backwards so
that the backlash is removed from between the driving pins and the holes in
the blade.
-Check to see blade brush bristles are just touching sawblade teeth adjust if
necessary.
-Reinstall the blade guard.
The blade guard assembly is also adjustable, and may require adjustment when
changing blade diameter sizes. If not in proper adjustment, it may prevent the
saw frame from its' full travel up or down. Loosen the two SHCS at rear and
adjust as necessary.
