14.3 Alternative gun support for studs exceeding 50 mm length
(in particular insulation pins)

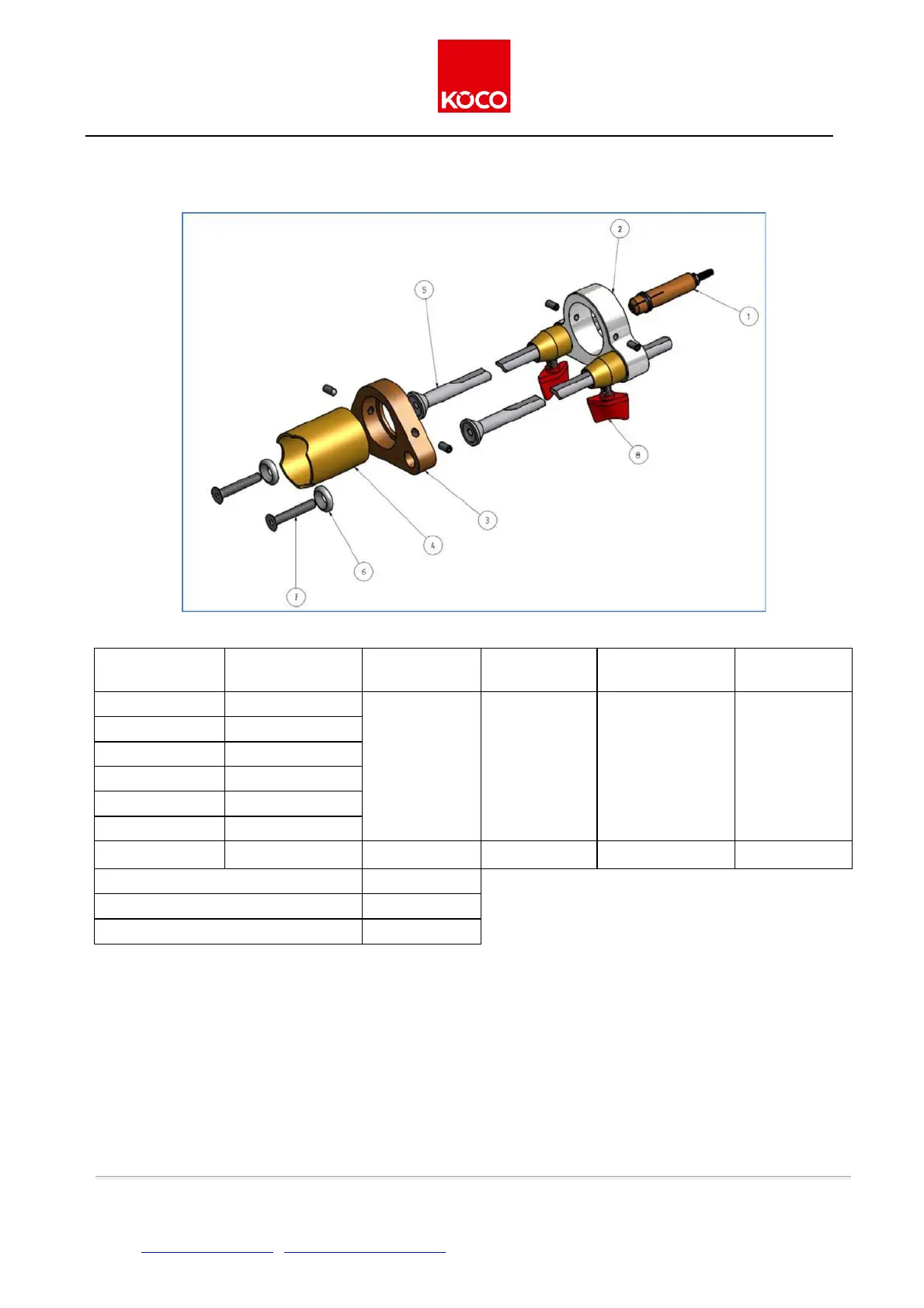

Fig. 30: Gun support for studs exceeding 50 mm length
Stud diameter
Chuck pos. 1
Mounting
flange pos. 2
Foot plate
pos. 3
Supporting tube
pos. 4
Leg pos. 5
Ø 2 x > 50
351-7002-000
326-0027-000
360-0012-000
360-0335-000
370-0240-000
Ø 3 x > 50
351-7001-000
Ø 4 x > 50
351-7004-000
Ø 5 x > 50
351-7005-000
Ø 6 x > 50
351-7006-000
Ø 8 x > 50
351-7008-000
Ø 10 x > 50
351-7010-000
Washer pos. 6
370-0055-000
Screw with hexagon socket pos. 7
322-0372-000
Wing screw pos. 8
322-0631-000
The complete gun accessories for insulation pins 3 mm Ø is available with part-no. 326-0028-000.
Issue 4/2019 ver. 2.0 page 41 of 42
