2. System Overview
Components

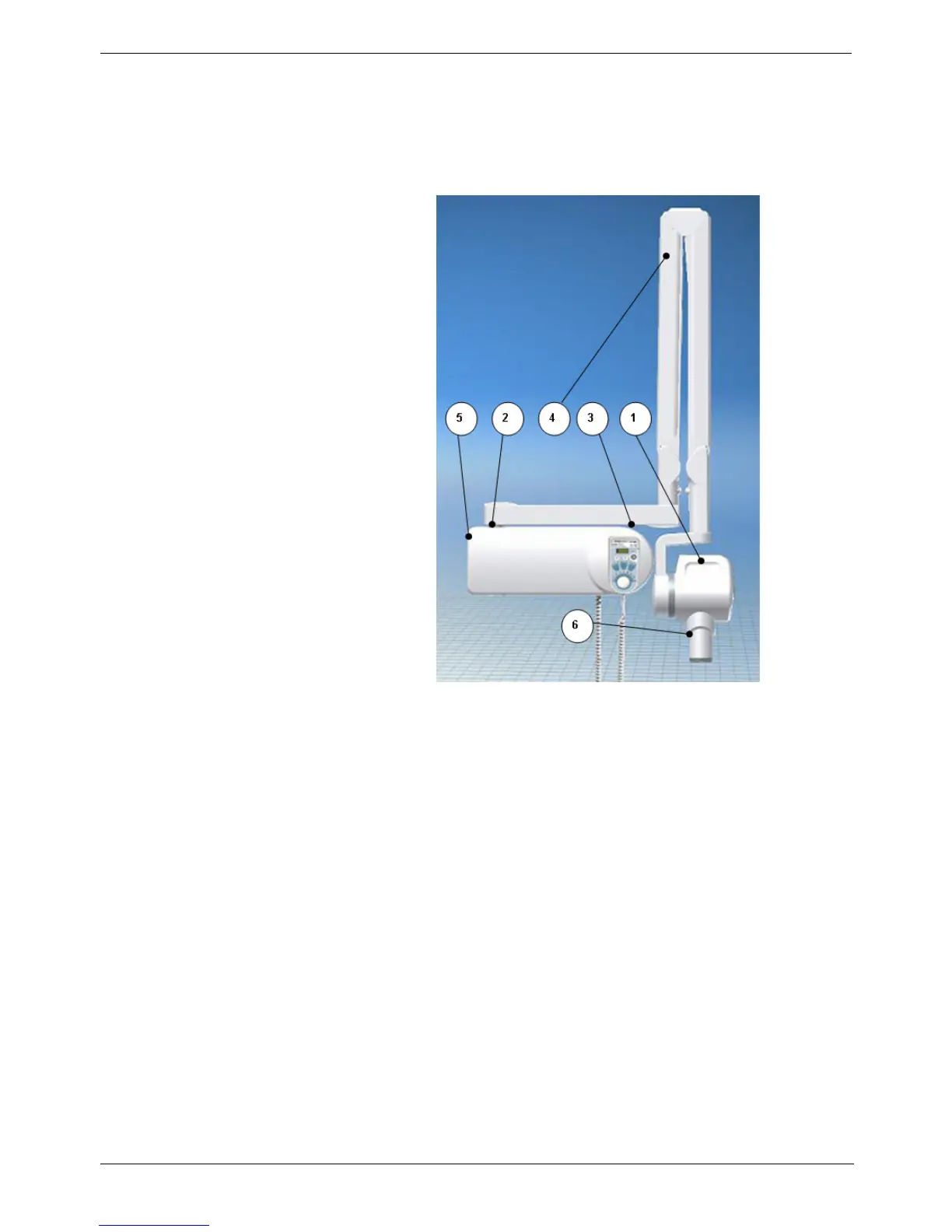

Figure 1: KODAK 2200 Intraoral X-ray System
1. High-frequency x-ray generator
• Transformer and associated electronics, and an oil-bathed x-ray tube
• Beam-limiting device
• Radiation diameter – 6 cm (2 3/8 in.)
• Distance from x-ray tube focal spot to skin – 20 cm (7 7/8 in.)
• Angle scale and handle to facilitate positioning
2. Wall framework
• Contains the high-frequency generator’s control electronics
3. Control timer unit
• Anatomical selection and display of parameters (exposure time,
emitted dose)
• Self-test of the microprocessor each time the unit is activated
• Alarm during incorrect operation
• 2 pre-set modes or manual exposure settings
