Ceiling-mounted Unit

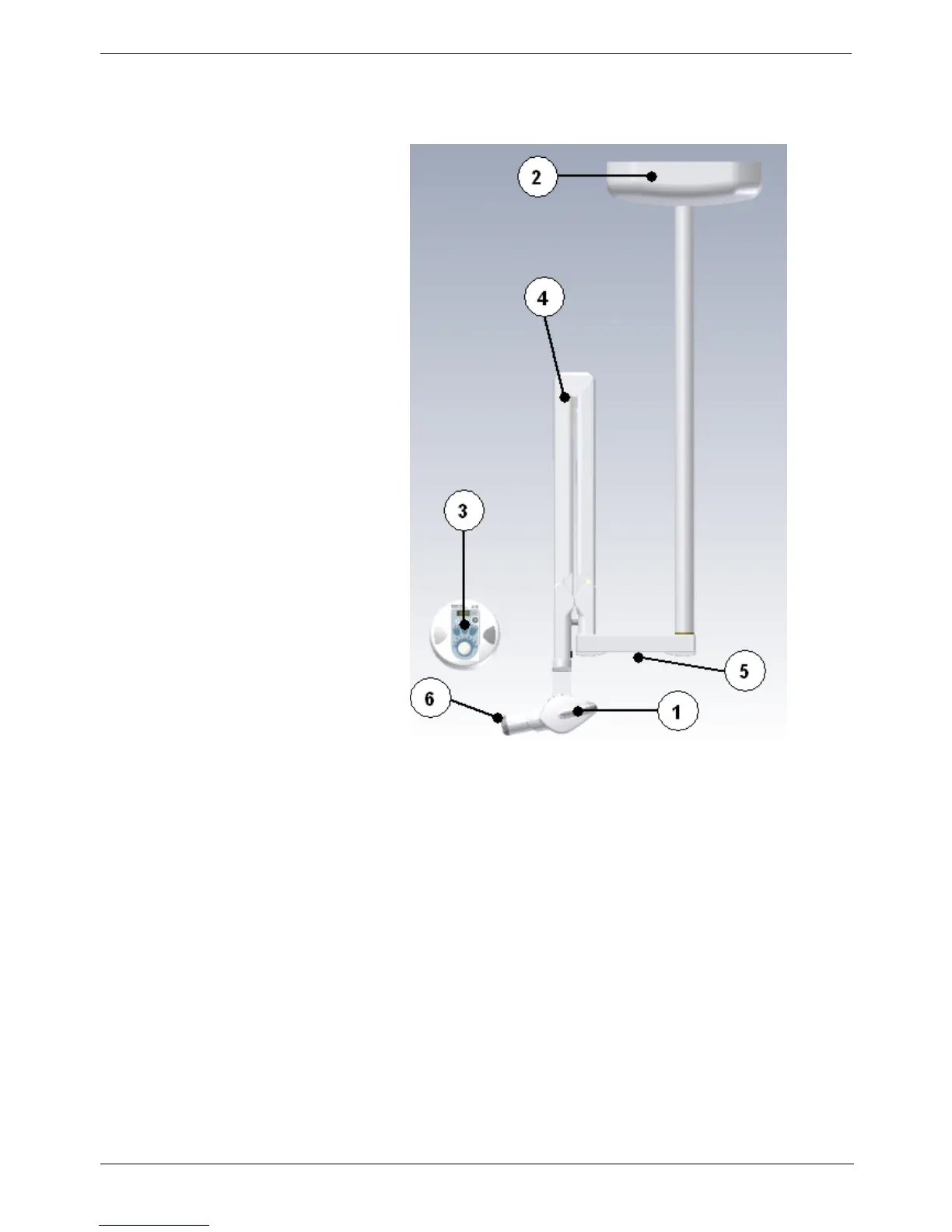

Figure 6: KODAK 2200 Intraoral X-ray System ceiling-mounted unit
1. High-frequency x-ray generator
2. Ceiling-mounted unit containing the high-frequency x-ray
generator’s control electronics
3. Separate timer/control unit for the x-ray generator
4. Scissor arm
5. On/off switch with built-in light
6. Rectangular collimator
