SM731_K2200_01_en 06/2009
2-8
Control Timer Unit

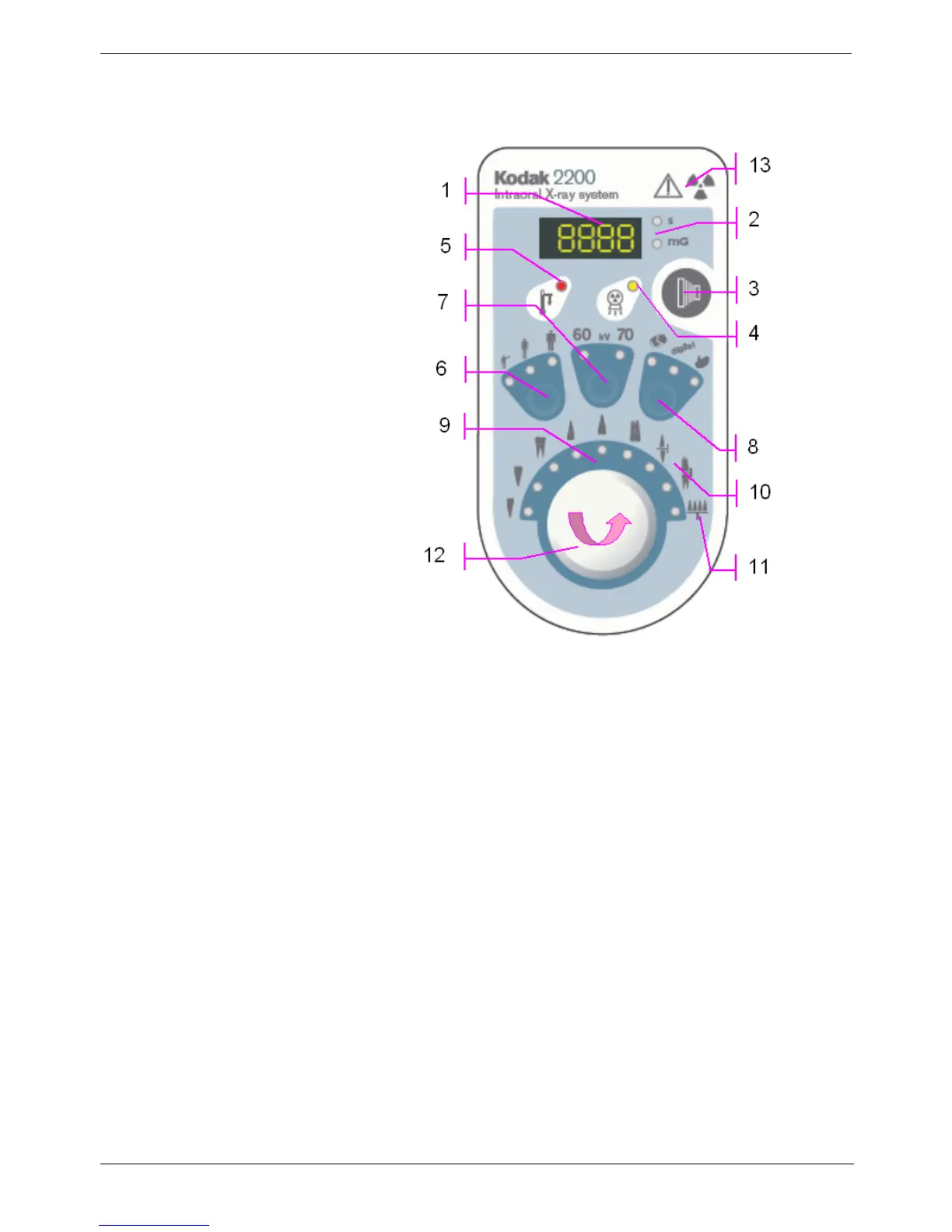

Figure 9: KODAK 2200 Intraoral X-ray System control timer unit
1. Display
2. Exposure time - emitted dose selection
3. X-ray exposure button
4. X-ray emission control light
5. Cooling indicator
6. Child/Adult/Large selector
7. kV selector
8. Receptor selector (2 pre-set modes, 1 manual mode)
9. Teeth selector
10. Bitewing selector
11. Occlusal selector
12. Selection knob:
• Pre-set mode: Rotate the knob to select tooth
• Manual mode: Rotate the knob to select the exposure time
• Press the knob quickly to display the latest measure dose emitted
13. Warning: Ionizing radiation
