Mounted on Mobile Stand (Optional)

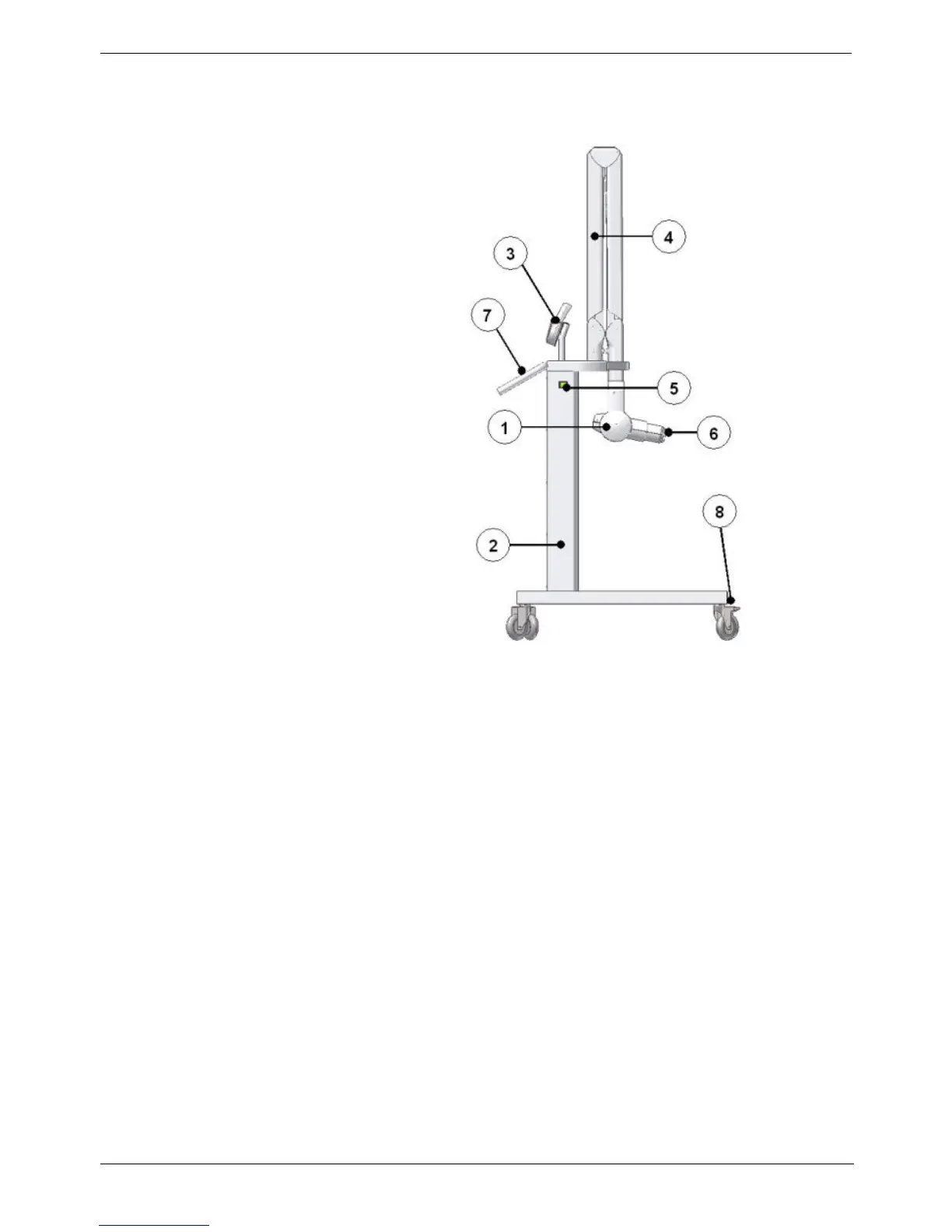

Figure 7: KODAK 2200 Intraoral X-ray System mounted on mobile stand
1. High-frequency x-ray generator
2. Mobile stand containing the high-frequency x-ray generator’s
control electronics
3. Timer/control unit for the x-ray generator
4. Scissor arm
5. On/off switch with built-in light
6. Rectangular collimator
7. Handle
8. Foot brake
