Kodak 8000C - Laser Locations

General Overview
KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System User Guide (SM735)_Ed 02 2–5
Laser Locations

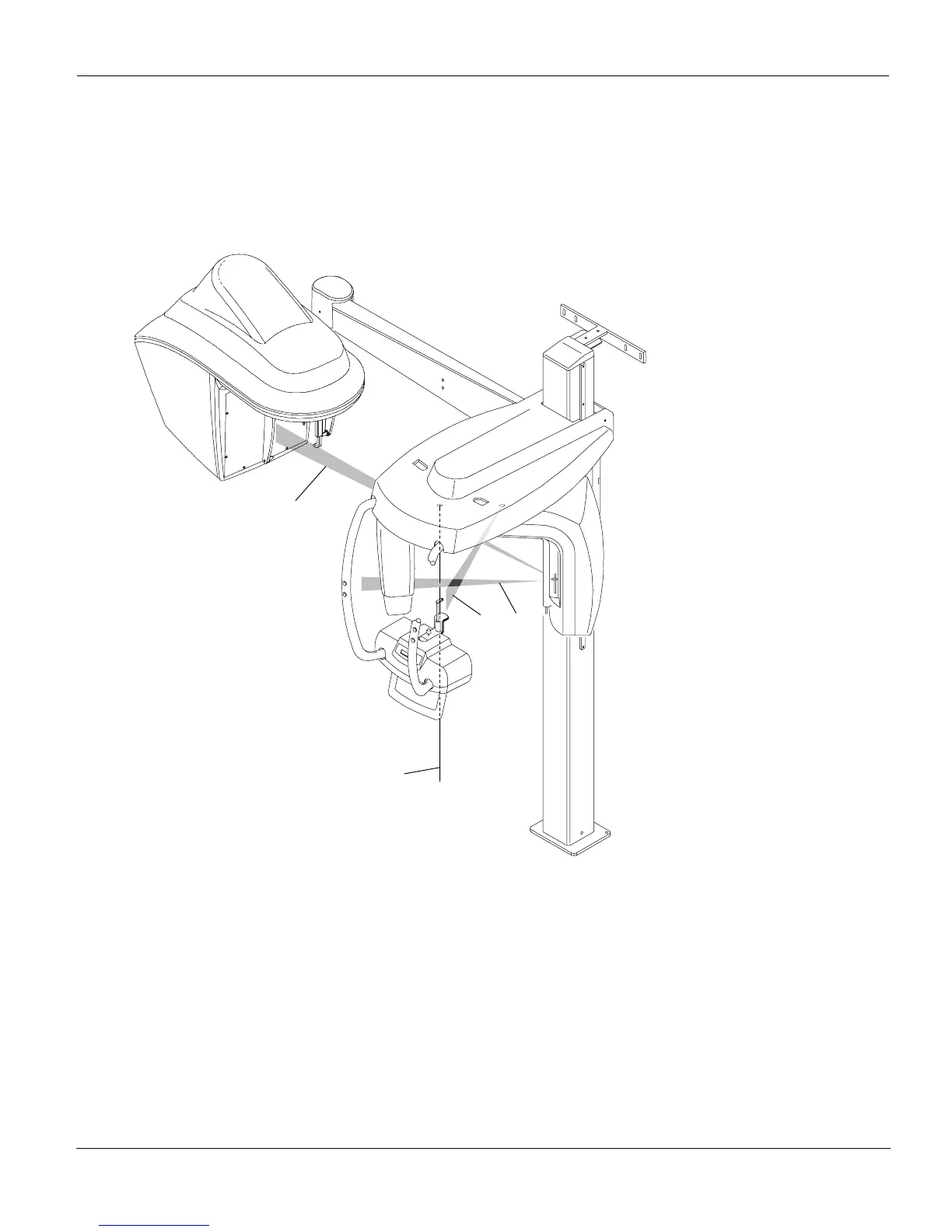

Figure 2-4 illustrates the location of the lasers of the KODAK 8000C digital panoramic
and cephalometric units.
Figure 2–4 KODAK 8000 and KODAK 8000C Units Laser Beam Locations
1 Mid-sagittal plane positioning laser beam
2 Frankfort plane positioning laser beam
3 Canine plane positioning laser beam
4 Cephalometric Frankfort plane positioning laser beam
2
1
4
3
