KODAK 8000C Digital Panoramic and Cephalometric Extraoral Imaging System User Guide (SM735)_Ed 02 2–3
General Functional Components
Figure 2-2 illustrates the general functional components of the KODAK 8000C digital
panoramic and cephalometric units.

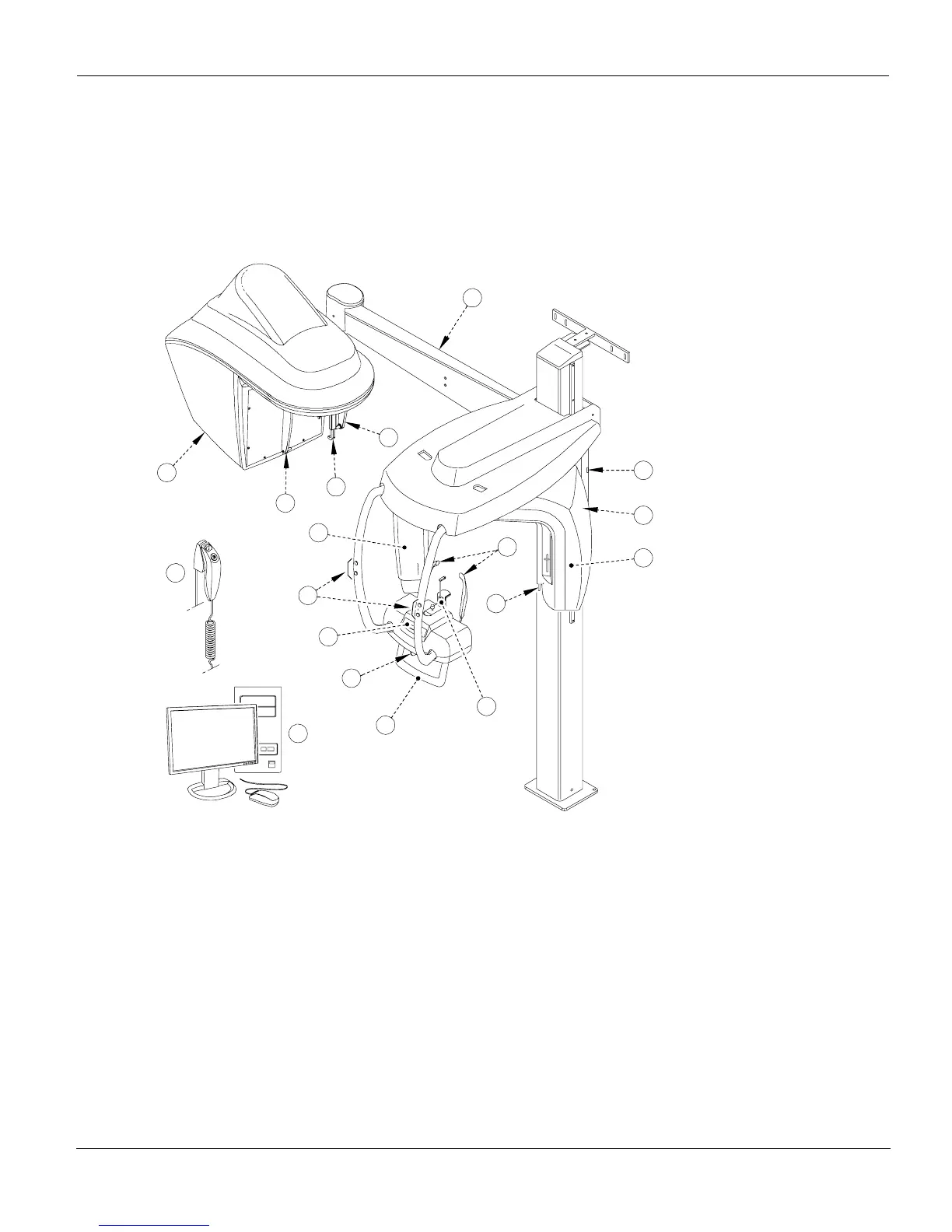

Figure 2–2 KODAK 8000 and KODAK 8000C Units Functional Components
1 ON/OFF button 10 Collimator selector
2 Chin rest and bite block 11 Unit rotative arm
3 Temple supports 12 X-Ray remote control
4 Temple supports control knob 13 PC hosting the imaging and the acquisition
software
5 Hand Grips 14 Cephalostat arm
6 Control panel 15 Cephalostat head
7 Height adjustment buttons 16 Head clamps and ear cones
8 Panoramic digital sensor 17 Nasion support
9 X-Ray source assembly
12
13
3
7
9
1
8
4
5
6
2
11
10
14
15
16
17
16
