Acquiring a Frontal AP or PA Image
5–8 ACQUIRING CEPHALOMETRIC IMAGES
2. Launch the x-ray with the remote control. Press and hold the exposure button until the
end of acquisition. The
turns yellow indicating x-ray emission. The image appears
on the Preview Screen of the Cephalometric Acquisition Window. When the
acquisition ends, the Cephalometric Acquisition Window disappears and the
acquired image is automatically transferred to the Imaging Window.
3. Check the image quality. If satisfactory, remove the ear cones and release the patient.

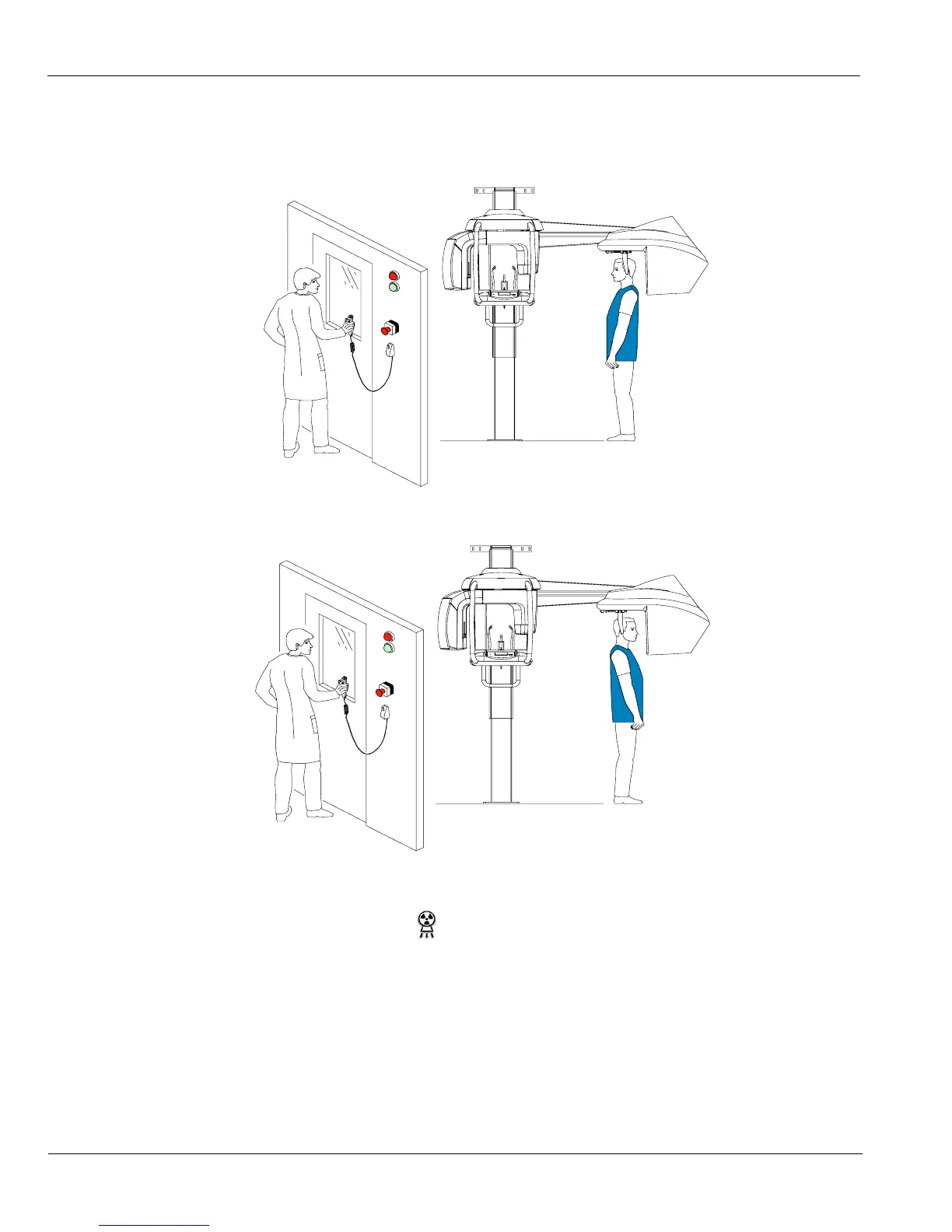

Figure 5–5 Frontal AP
Figure 5–6 Frontal PA
