PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
13 of 30
Cleaning and Applying Lubricant to the SLOW SCAN SLIDES
1 Use a LINT-FREE CLOTH to clean:
• SLOW SCAN SLIDES
• top of the EXTRACTION BAR
Caution
Do not apply SPINDLE OIL on the LEAD SCREW.
2 Apply 2 drops of SPINDLE OIL on each of the 2 SLOW SCAN SLIDES.
3 Rotate the LEAD SCREW up and down to apply the lubricant.
4 Apply 2 drops of SPINDLE OIL in the holes on the CARRIAGE.
5 Continue with Cleaning the ERASE LAMP AY.

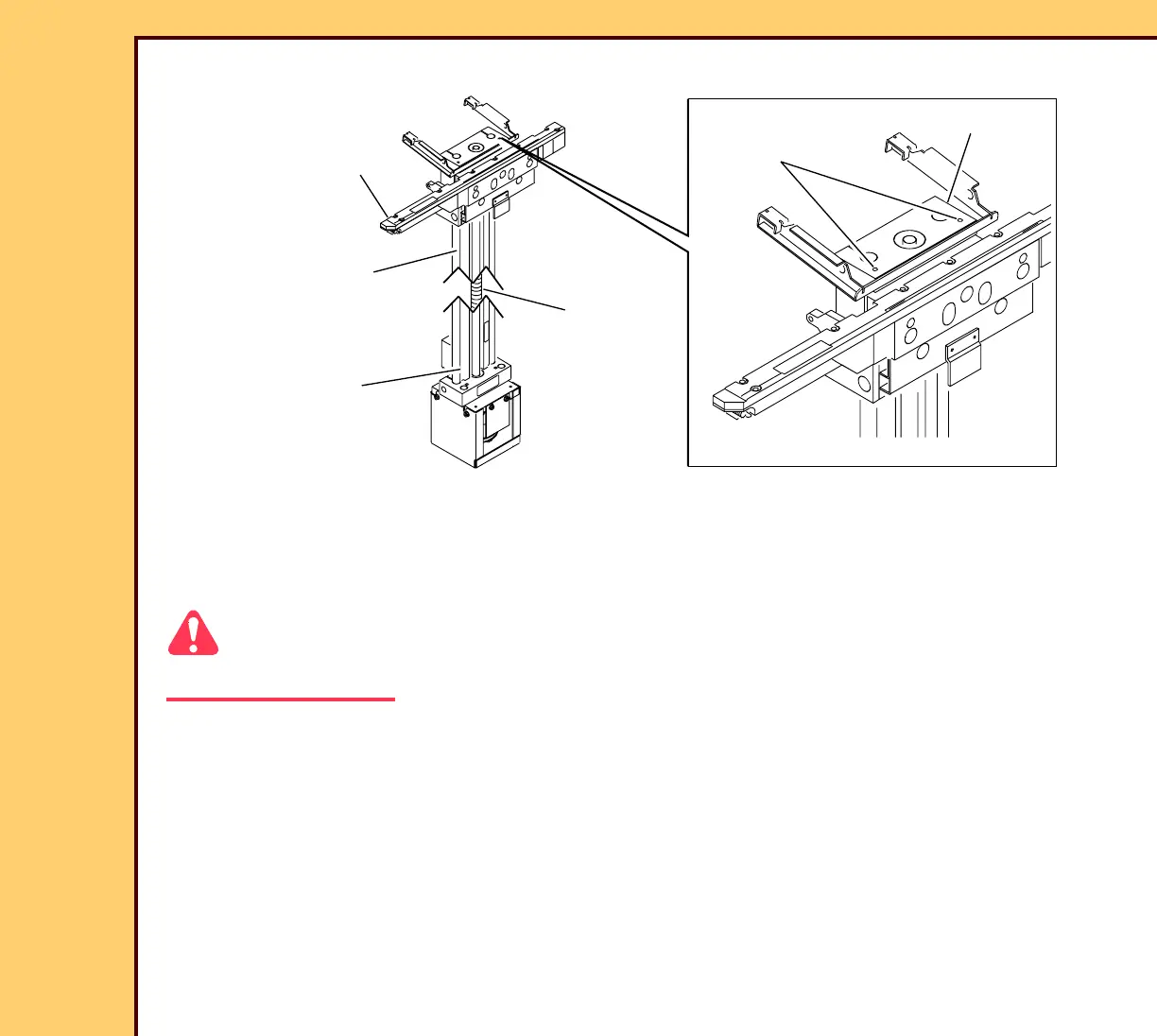

H194_1082BC
EXTRACTION BAR
H194_1082BCA
SLOW SCAN
SLIDES
SLOW SCAN AY
LEAD
SCREW
CARRIAGE
holes
To Next Page
