PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
26 of 30

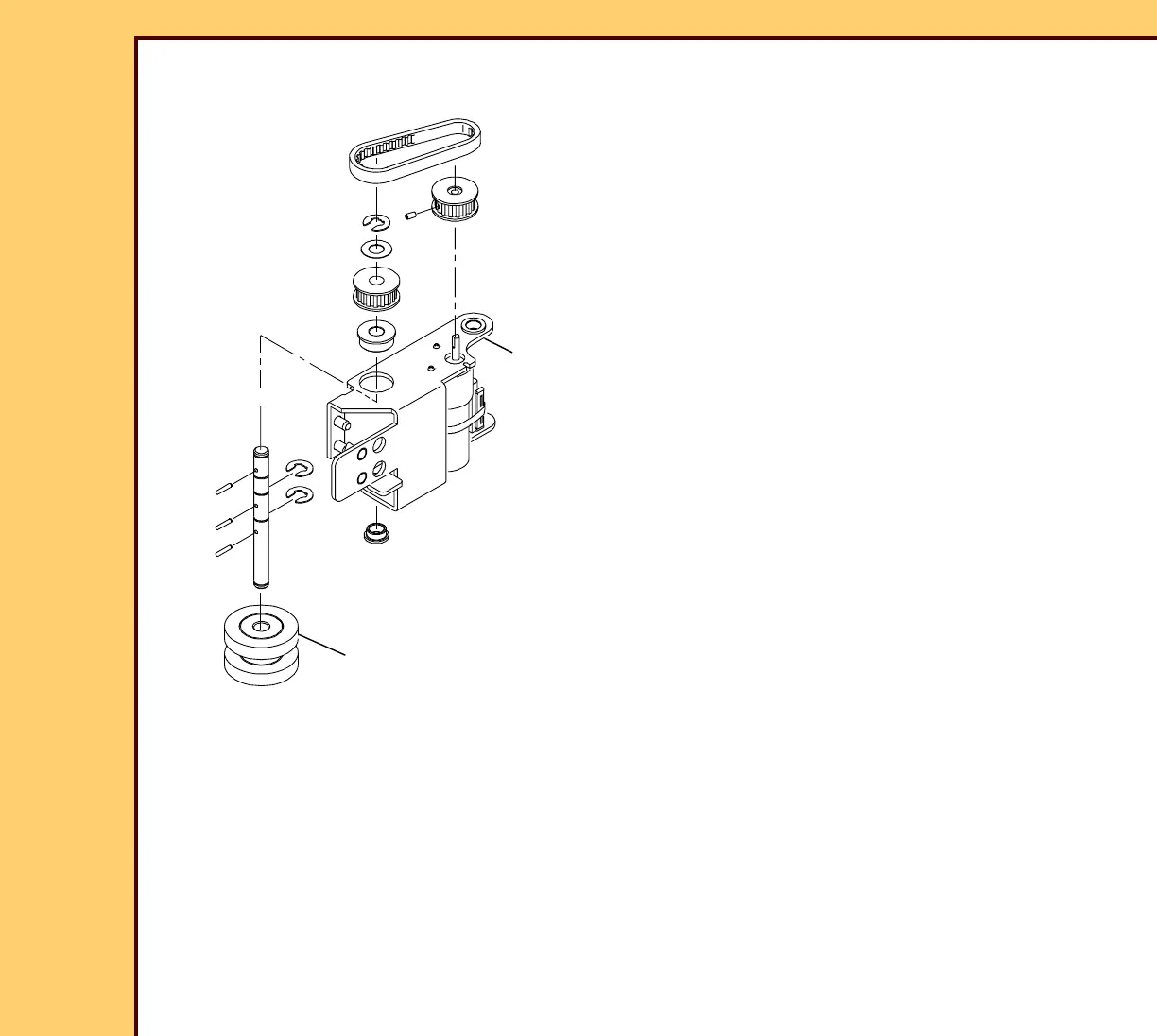

Installing the New CASSETTE DRIVE ROLLERS
1 Remove the CASSETTE DRIVE AY.
2 Remove and discard the 2 CASSETTE
DRIVE ROLLERS.
3 Install:
• 2 new CASSETTE DRIVE
ROLLERS
• CASSETTE DRIVE AY
4 Continue with Checking the CAM and
MOTOR.
H194_1007GC
MOTOR
PULLEY
2 SETSCREWS
DRIVE ROLLERS
2 CASSETTE
2 E-RINGS
PULLEY
WASHER
E-RING
BELT
H194_1007GCA
CASSETTE
DRIVE AY
BUSHING
BUSHING
PIN
SHAFT
2 PINS
H194_1007GC
H194_1007GCB
DRIVE AY
CASSETTE
2 CASSETTE
DRIVE ROLLERS
