PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
25 of 30

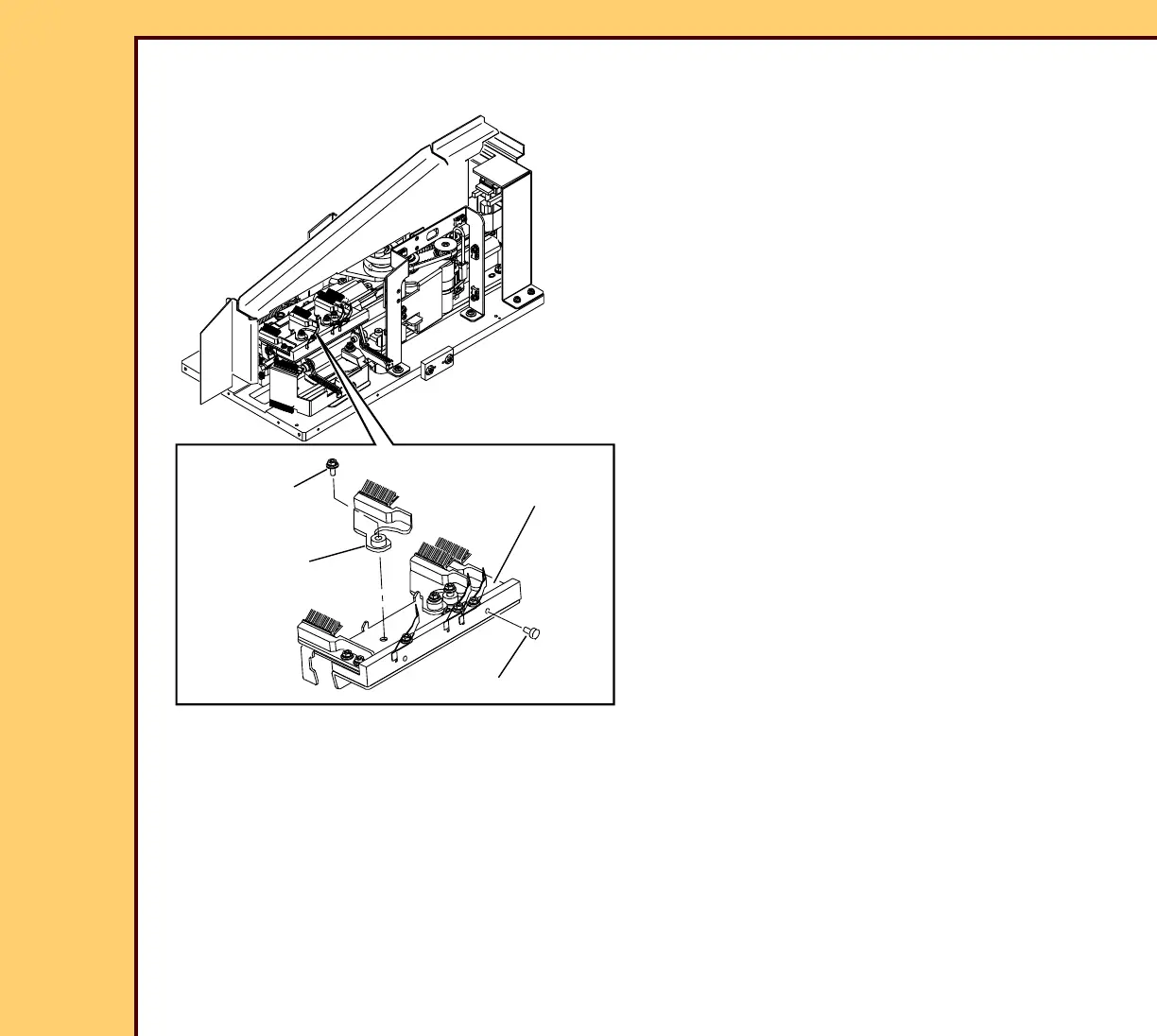

Installing the New LIGHT SEAL PADDLE
1 Remove:
• 3 SCREWS
• 3 LIGHT SEAL PADDLES - discard
2 Install:
• 3 new LIGHT SEAL PADDLES
PLUSH
• 3 SCREWS
• RIGHT PLUSH PADDLE AY
• 2 SCREWS
3 Continue with Installing the New
CASSETTE DRIVE ROLLERS.
H194_1092GC
H194_1092GCA
2 SCREWS
PADDLE AY
RIGHT PLUSH
PADDLES
3 LIGHT SEAL
3 SCREWS
