Kodak DirectView CR 825 Preventive Maintenance

PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
27 of 30
Checking the CAM and MOTOR
1 Remove the CAM MOTOR AY.
2 Pull the CAM toward the MOTOR.Check
that the CAM does not move on the
SHAFT of the MOTOR by pulling to
CAM toward the MOTOR.
3 Does the CAM move on the SHAFT?
4 Install the CAM MOTOR AY.
5 Continue with Checking the
Adjustments.

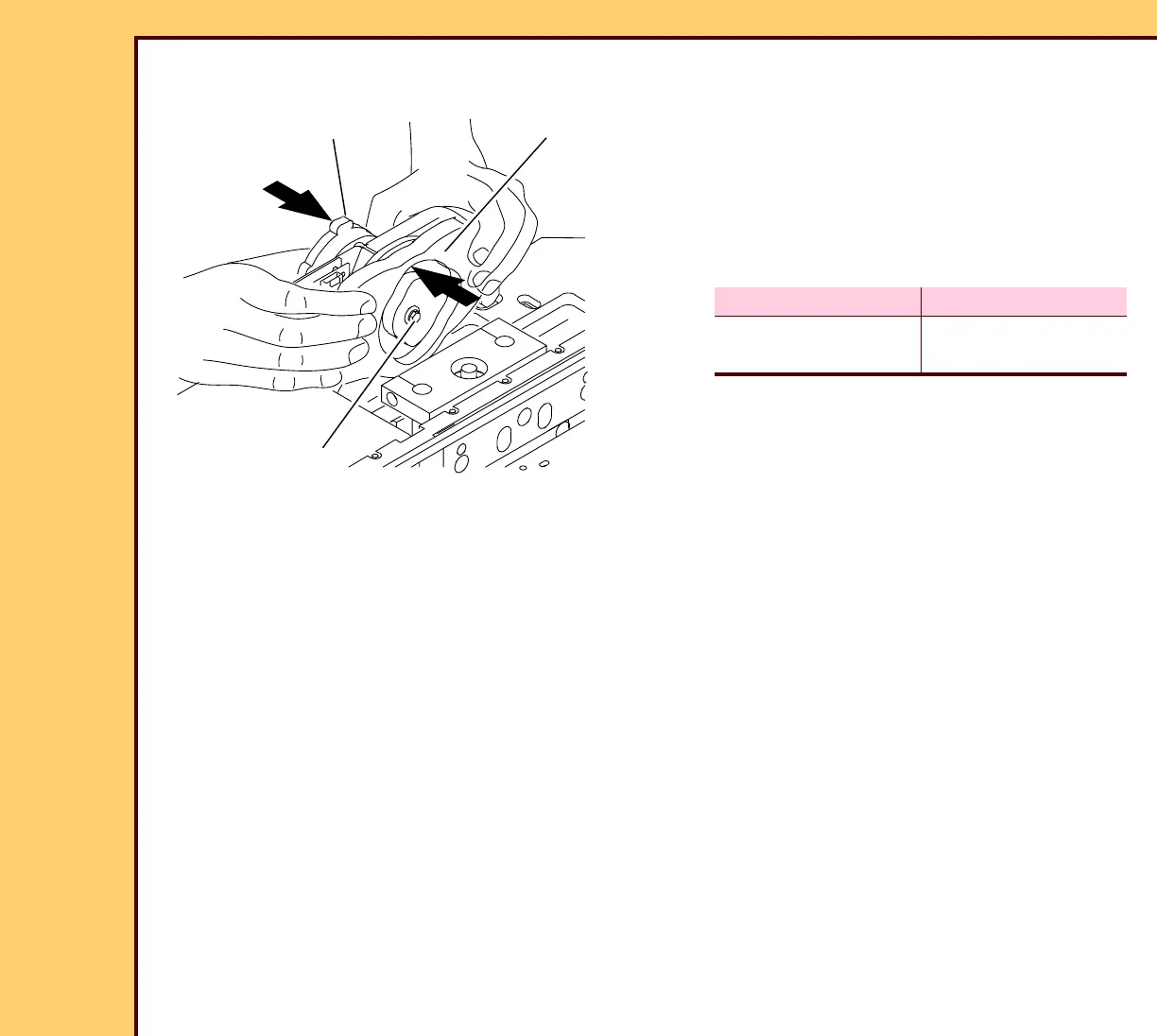

H177_3031AC
SHAFT
CAM
MOTOR
H177_3031ACA
Yes No
Install new CAM
MOTOR AY.
Continue with Step
4.
