PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
20 of 30
Installing the New REAR CLIP AY
1 Open the TOP COVER.
2 Remove:
• 4 SCREWS
• REAR BRACKET AY
3 Remove:
• 2 SCREWS
• REAR CLIP AY - discard
4 Install:
• new REAR CLIP AY
• 2 SCREWS
5 Reverse Step 2.
6 Continue with Installing the New
LIGHT SEAL PLUSH.

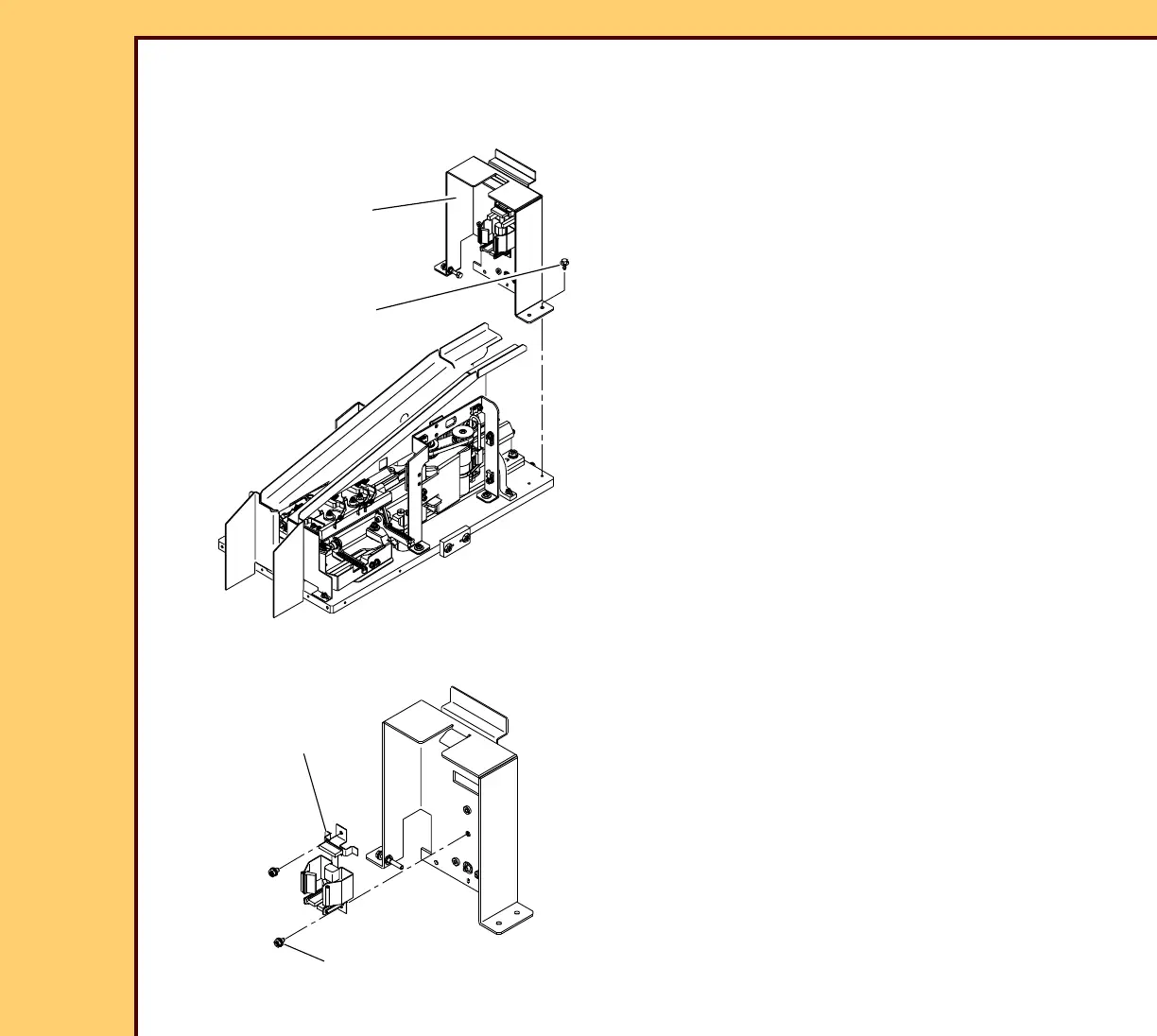

H194_1086GC
REAR BRACKET AY
4 SCREWS
H194_1086GCA
H194_1087AC
REAR CLIP AY
2 SCREWS
H194_1087ACA
