A-61560 January 2010 4-3
Cleaning the separation
module
The separation module should be removed from the scanner for best
cleaning results.

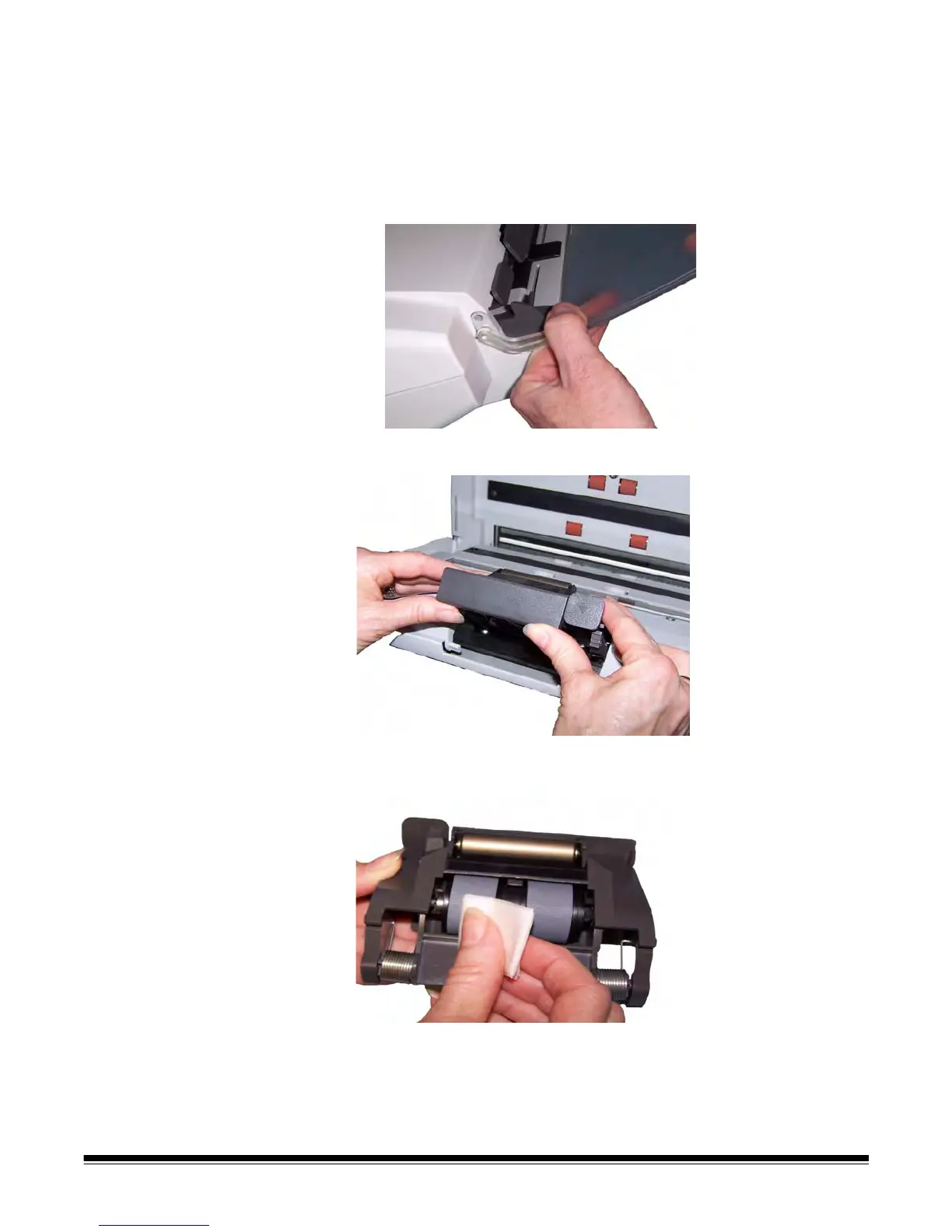

NOTE: When removing or cleaning the separation module, it may be
easier to access the separation module if you remove the input
tray. To remove the input tray, gently push the input tray to the
left or right to release the pin from the slot, and lift it out of
position.
1. Push the separation module up to snap out and lift it out of position.
2. Manually rotate and wipe the separation module tires with a roller
cleaning pad.
3. Inspect the separation module.
If the separation module tires show signs of wear or damage,
replace the tires or the separation module. See “Replacement
procedures” for more information.
