1-4 A-61560 January 2010
Scanner components

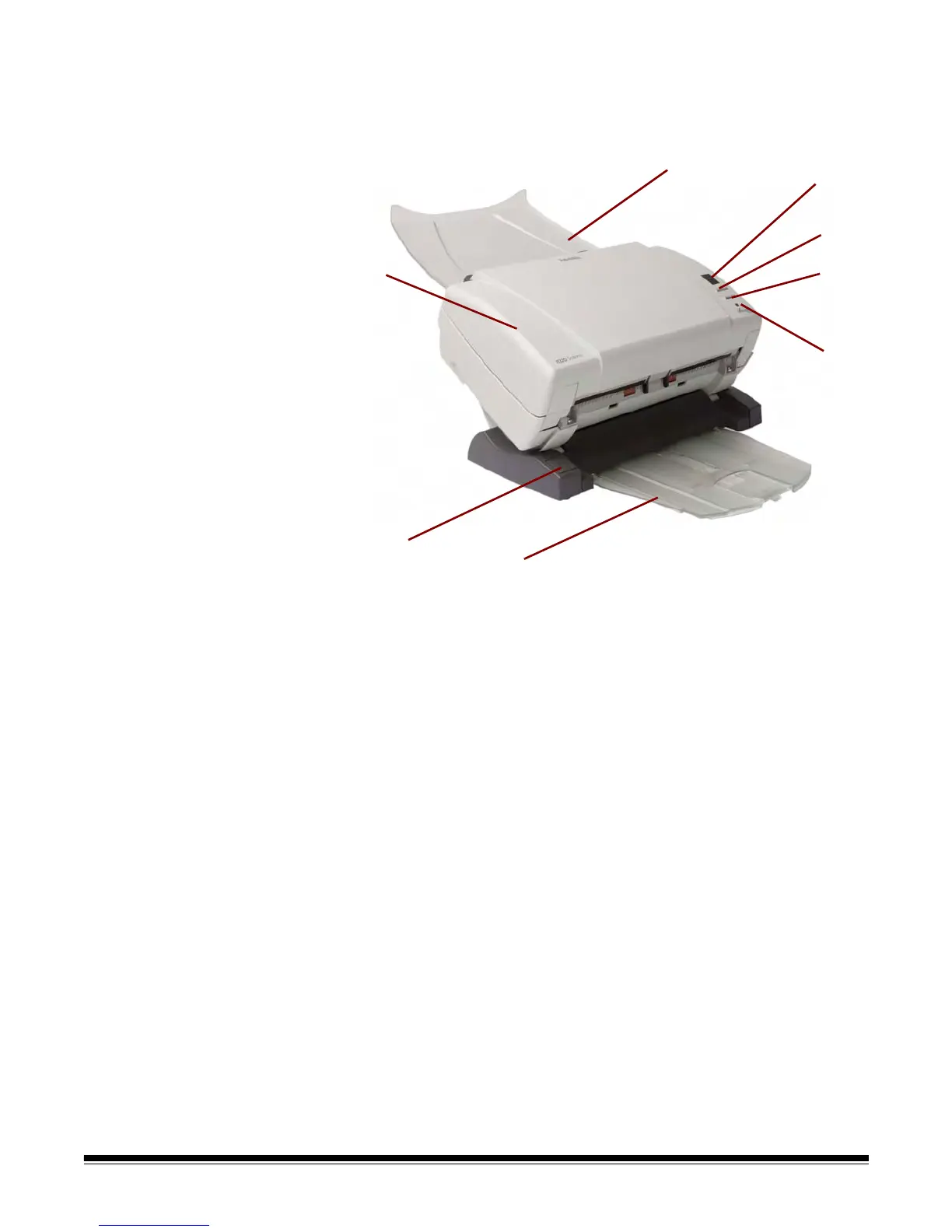

Front view
Scanner cover — provides access to internal components; such as,
the imaging area and the feed and separation modules.
Tilt button — allows you to rotate the scanner into a downward or
upright position.
Standard output tray — collects the scanned documents. Use this tray
when you are scanning 5 pages or less; otherwise, use the optional
output tray kit.
Input tray — holds up to 75 documents (20 lb./75 g/m
2
).
Function window — displays 0 - 9. These numbers correspond to a
predefined function. E is displayed if an error is encountered.
Scroll button — allows you to select or scroll through predefined
functions or applications for scanning.
Start button — launches the selected application that is associated
with the displayed number in the Function window.
LED Indicator — illuminates or flashes indicating scanner status.
• Steady green: ready to scan
• Flashing green: preparing to scan
• Flashing red: error indication such as, Scanner Cover Open, in
conjunction with the Function window displaying an “E”. See Chapter
5, Troubleshooting for error code descriptions.
NOTE: The Start button, Scroll button and Function window are used
with the Smart Touch functionality.
Scanner
cover
Tilt
button
Input
tray
Function
window
LED
indicator
Start
button
Scroll
button
Standard output tray
