Kodak i1220 Plus - Cleaning the Feed Module

4-4 A-61560 January 2010

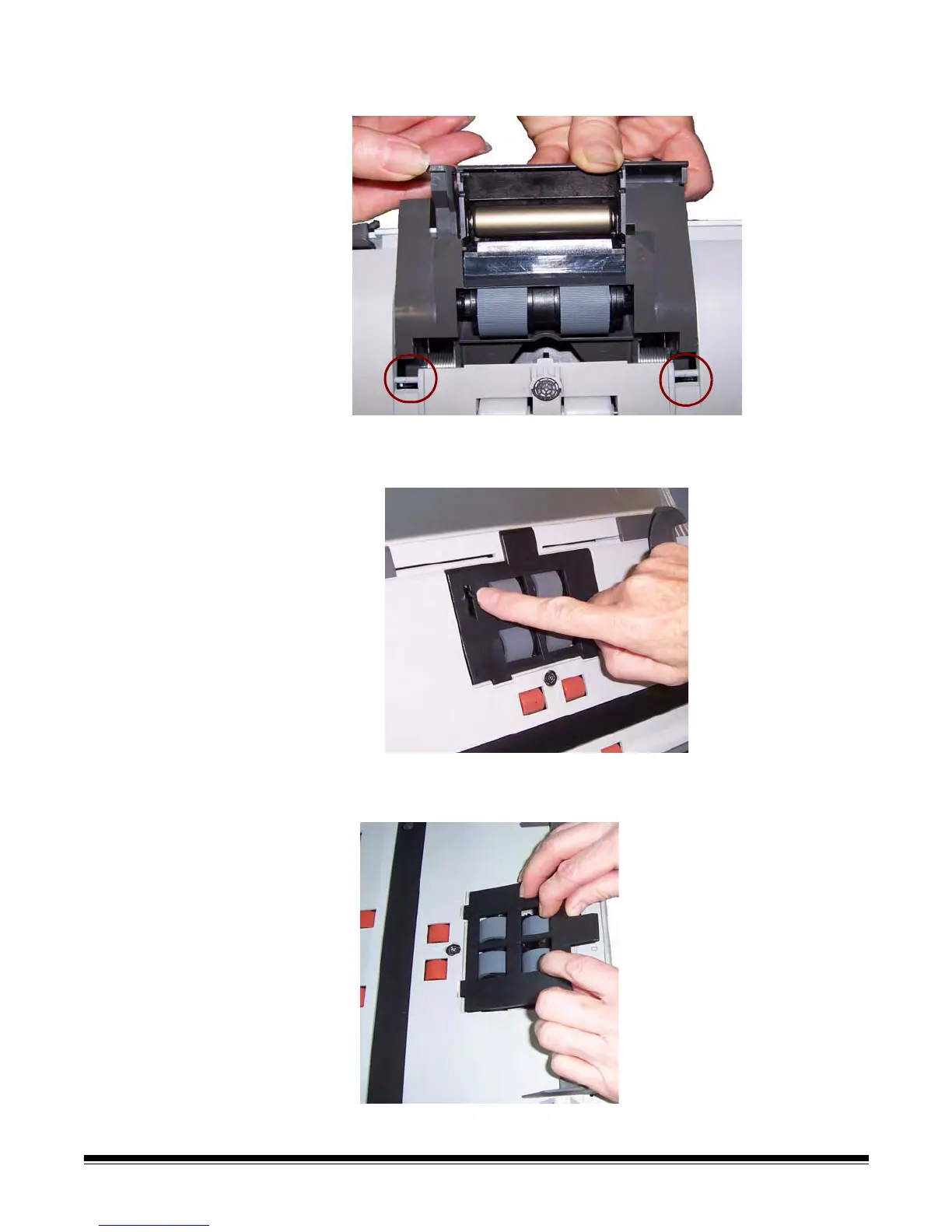

4. Insert the separation module by aligning the tabs with the slots and
snapping it into position.
Cleaning the feed module NOTE: Be careful not to damage the paper present sensor when
removing or cleaning around the feed module.
1. Pull against the raised edge of the feed module cover and lift it up
and out of position.
