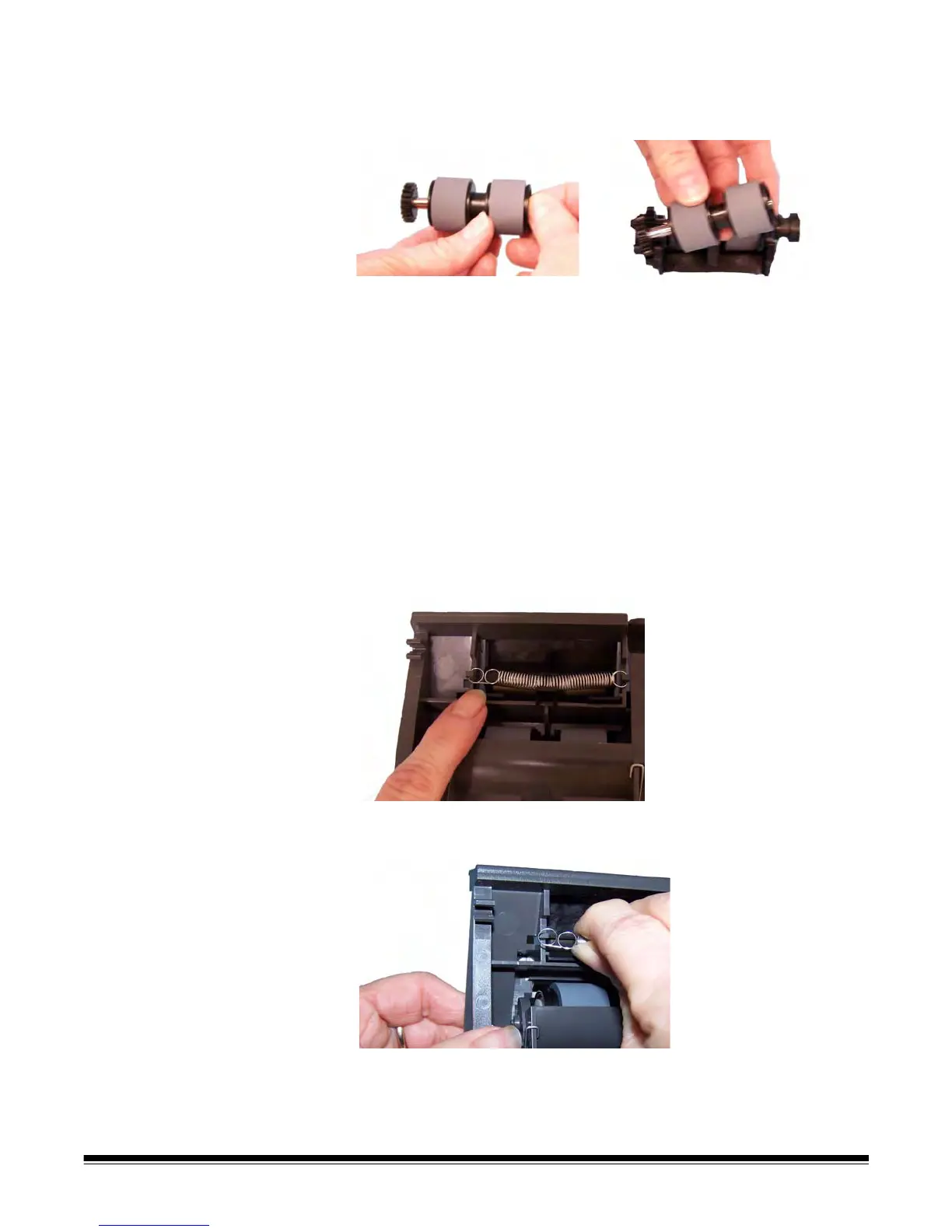

6. Replace the core assembly in the feed module. You may need to
slide the shaft to the right or left so the core fits properly within the
feed module housing.
7. Repeat the replacement procedure outlined above for the other core
assembly.
8. Reinstall the feed module.
9. Reinstall the feed module cover by aligning the tabs in the slots and
pushing the feed module cover down until it snaps into place.
Adjusting the pre-
separation roller
tension
If you are experiencing multi-feeds or document jams, it may be
necessary to adjust the pre-separation roller tension.
1. Remove the separation module from the scanner by following the
steps described previously in “Replacing the separation module and
tires”.
2. Locate the spring on the separation module.
3. Lift the spring from the holder and move it to the left or right as
desired to adjust the tension.
