4-12 A-61560 January 2010

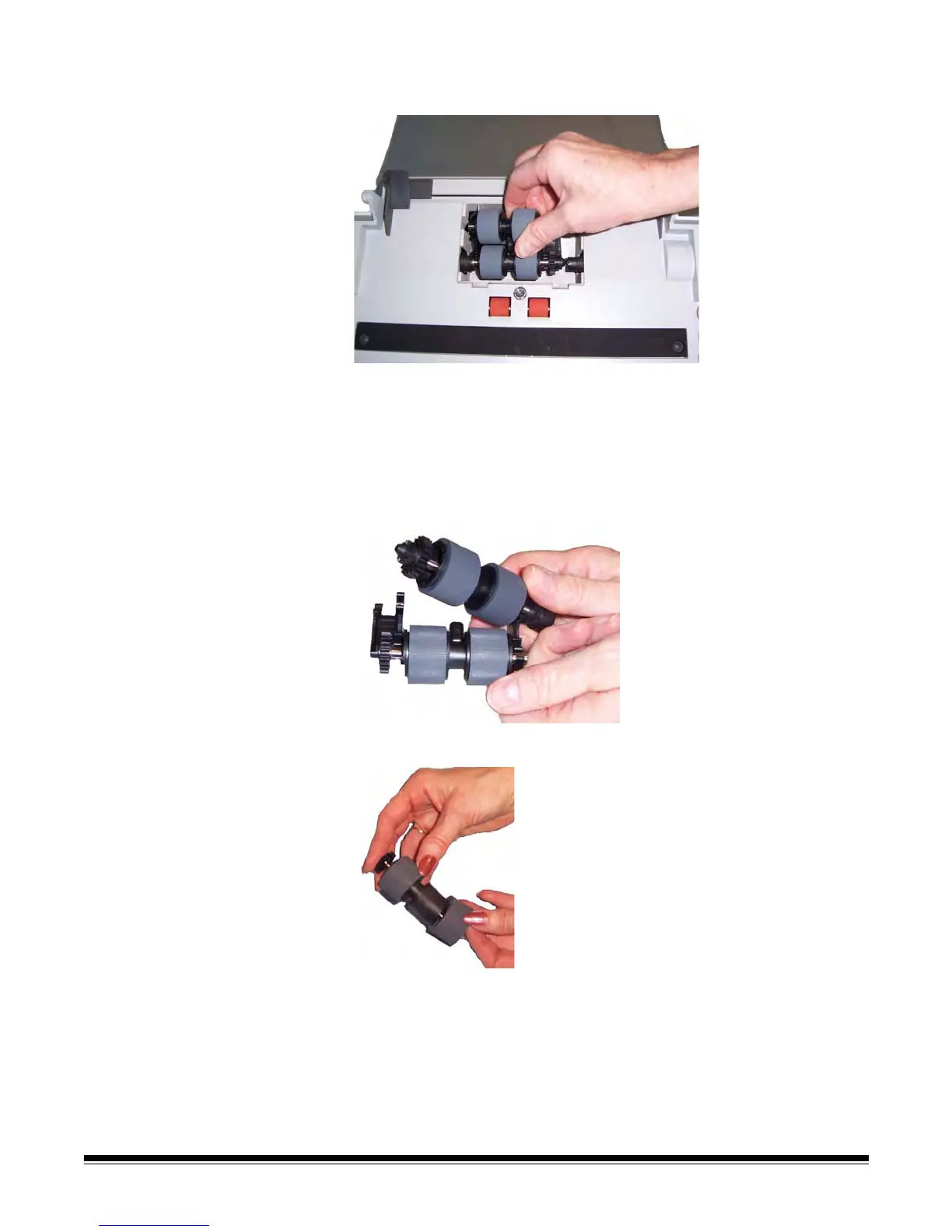

2. Rotate the feed module forward and push it to the left to lift it out of
position.
• If you are replacing the feed module, insert the new feed module
by aligning the pins and pushing it toward the left to fit it into
position. Be sure the gears are aligned and it snaps into place,
then go to Step 8.
• If you are replacing the tires, continue with Step 3.
3. Remove one core assembly by lifting up and out of position.
4. Remove each tire by sliding the tire off the core.
5. Install each new tire by gently pulling it over the core.
IMPORTANT:Do not overstretch the tire; it may tear.
