A-61560 January 2010 4-11
Replacing the feed module
and tires
NOTE: The paper present sensor is located to the right of the feed
module. Be careful not to damage the paper present sensor
when removing or cleaning around the feed module.

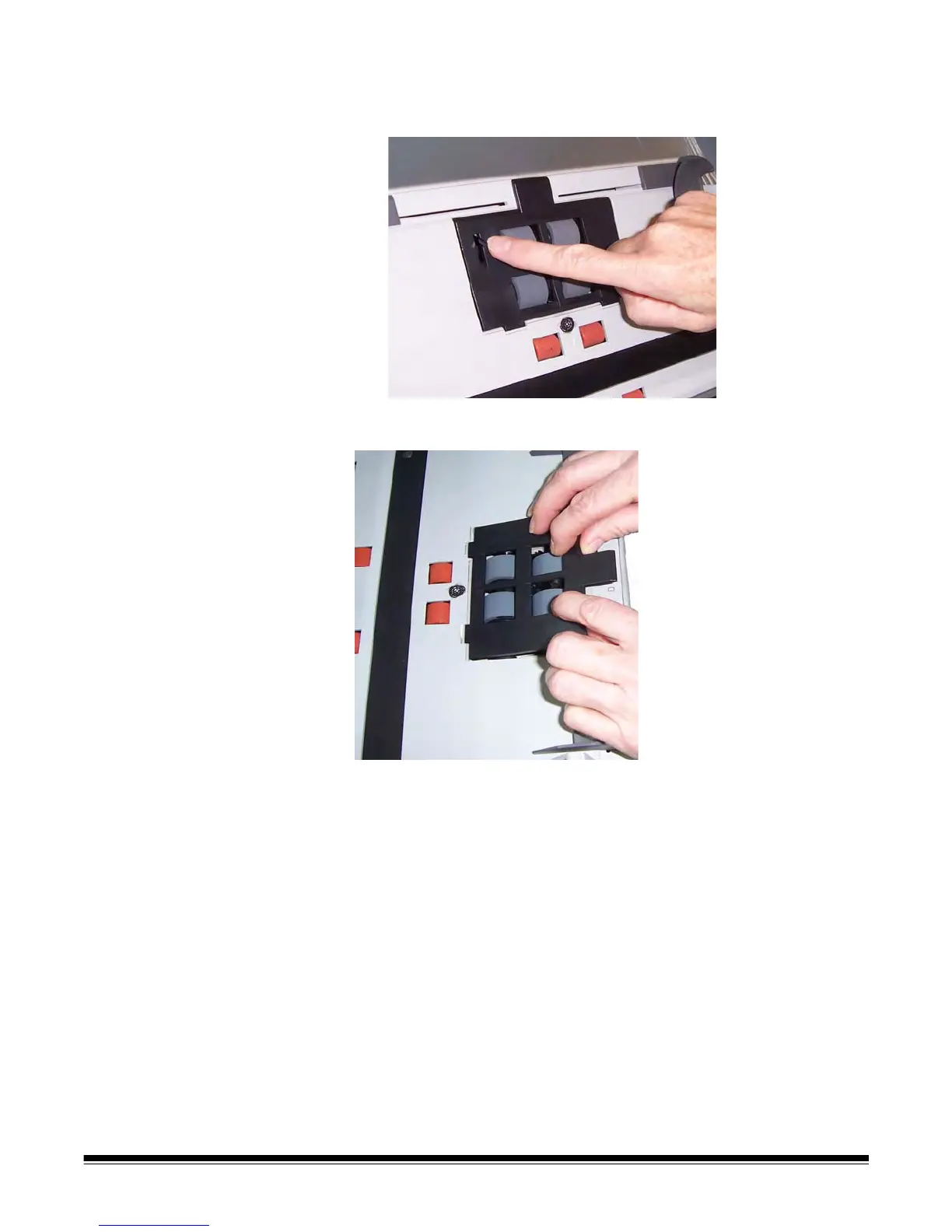

1. Lift the tab of the feed module cover and remove it from its position.
