5-6 A-61550 February 2010

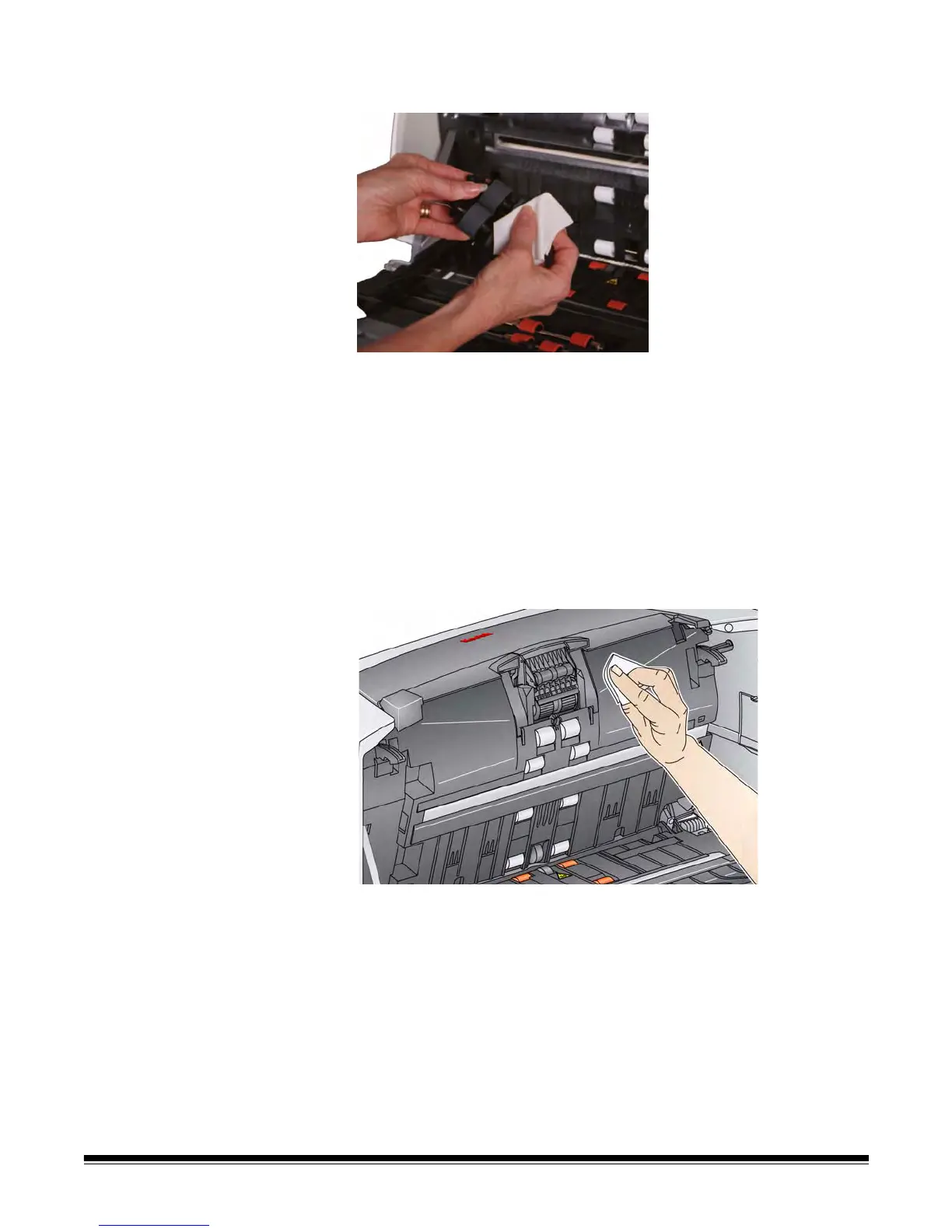

3. Manually rotate and wipe the feed module tires with a roller cleaning
pad.
4. Inspect the feed module. If the feed module tires show signs of wear
or damage, replace the tires or the feed module. See the section
entitled, “Replacing the feed module and feed module tires” later in
this chapter.
5. Remove any dust or debris from the tray area under the feed
module and the front roller cover.
6. Insert the feed module by aligning the pins and pushing it toward the
right to fit it into position.
7. Reinstall the front drive roller cover.
8. Wipe the upper and lower transport areas with a roller cleaning pad.
9. Dry the transport area with a dry Staticide Wipe.
