Kodak I1420 - Document Scanner - Cleaning the Feed Module

A-61550 February 2010 5-5

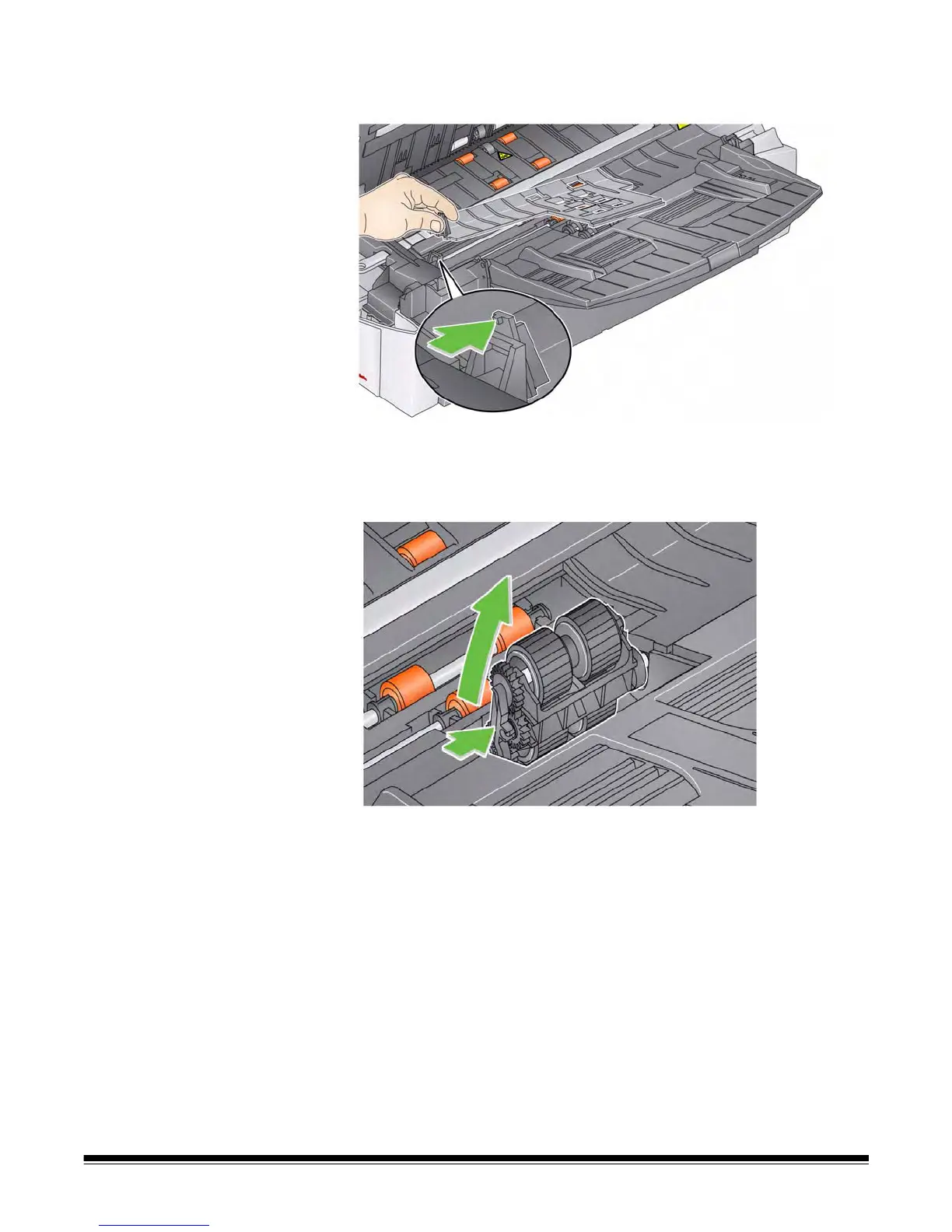

Cleaning the feed module 1. Push against the raised edge on the left side of the front drive roller
cover and pull the cover up and out to remove it.
NOTE: You may need to lift the input tray slightly to remove the
front roller cover.
2. Remove the feed module by pushing it to the right and lifting it out.
