INFORMATION ABOUT REPLACEMENTS
6
49
EN

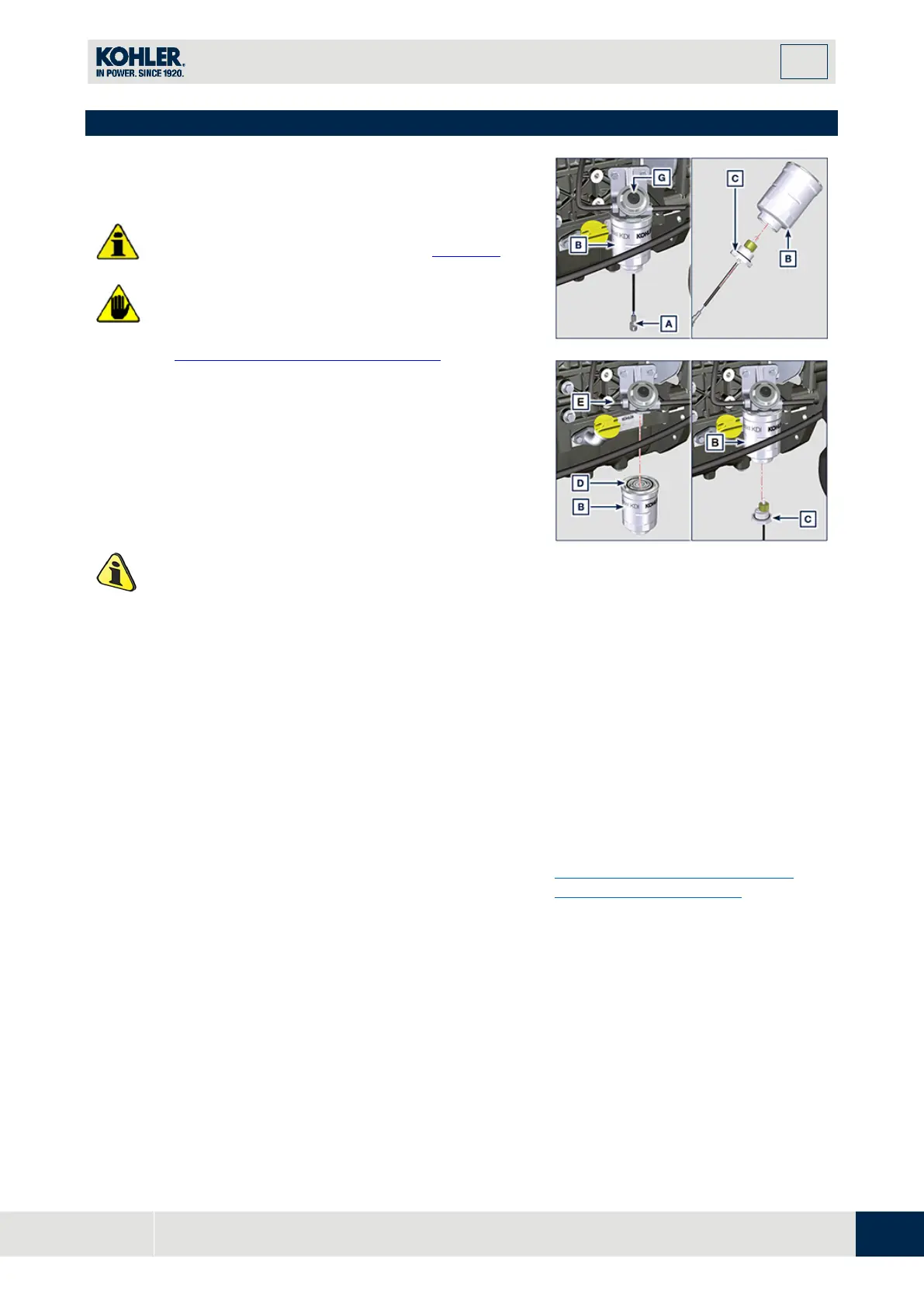

6.3 Filter cartridge and fuel pre-filter replacement
NOTE: The fuel filter is situated on the crankcase of the
engine or it may be assembled on the frame of the vehicle.
Important
•
Before proceeding with operation, read Par. 3.2.2
Warning
•
In case of low use replace il 12 months.
•
For disposal of oil filter cartridge and fuel filter refer
to Par. 6.5 DISPOSAL and SCRAPPING
1.
Disconnect the cable A of the water presence sensor
C.
2.
Remove the water presence sensor C from its cartridge
B.
3.
Loosen the cartridge B using the appropriate wrench
(Fig. 6.8).
4.
Lubricate the gasket D of the new cartridge B.
Important:
•
Do not fill the new cartridge B with fuel.
5.
Tighten the new empty cartridge B (Fig. 6.8) on the
diesel fuel filter support E using the special wrench
(tightening torque of 17 Nm).
6.
Tighten the water presence sensor C on the new
cartridge B (tightening torque of 5 Nm).
7.
Reconnect the cable A of the water presence sensor C.
NOTE: Bleeding.
8.
Push repeatedly the button G in order to fill the circuit.
6.7
6.8
NOTE:
Click on the icon to play the procedure.
https://www.youtube.com/embed/
eHPkX9yprM4?rel=0?rel=0
