Kohler M340+ User Manual

TP-5672 11/95 Service Parts 6-3
9.
10.
11.
12.
9.
BW-295000

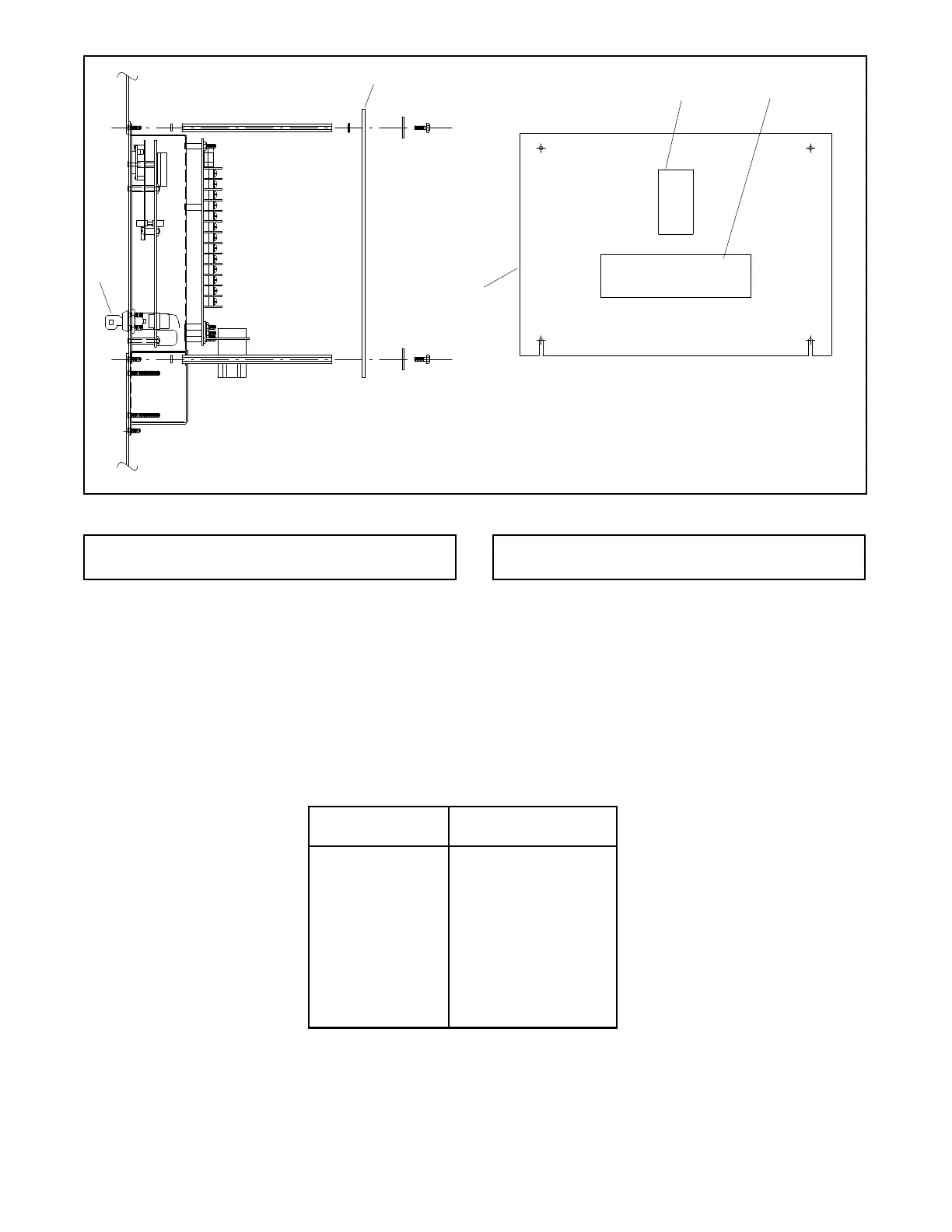

Figure 6-2. Micro-controller assembly
Description
VariationItem Qty. Part No.
Description
VariationItem Qty. Part No.
1. 1 Micro-controller assembly 346061
2. 1 Logic to interface harness See
Figure 6-4
3. 1 Contact Assembly 298049
4. 1 Block, contact 294651
5. 1 Switch, pushbutton 294653
6. 1 Pannel, inner 294741
7. 2 Transformers See
Figure 6-3
8. 1 Logic to power conversion
unit harness
See
Figure 6-4
9. 1 Guard 294860
10. 1 Decal, hazardous voltage 294328
11. 1 Decal, “This transfer...” 294523
12. 1 Key, replacement (6792) 296292
Key, replacement (6375) 296293
Key, replacement (PL976) 296294
Key, replacement (XX6286) 296295
Switch
Voltage
Item 7.
Transformer
110 294644
120 294593
190 294645
208 294594
220 294646
240 294595
380 294596
416 294597
480 294598
600 294599
Figure 6-3. Item 7—Transformer Part Numbers, See Figure 6-1 for illustration
