B-9Appendices

TP-5672 11/95

A-320790

1. P3 power supply board ribbon cable connector

2. P6 status panel ribbon cable connector

3. P10 load--shed buffer ribbon cable connector

4. P12 remote communications ribbon cable connector

5. JP1

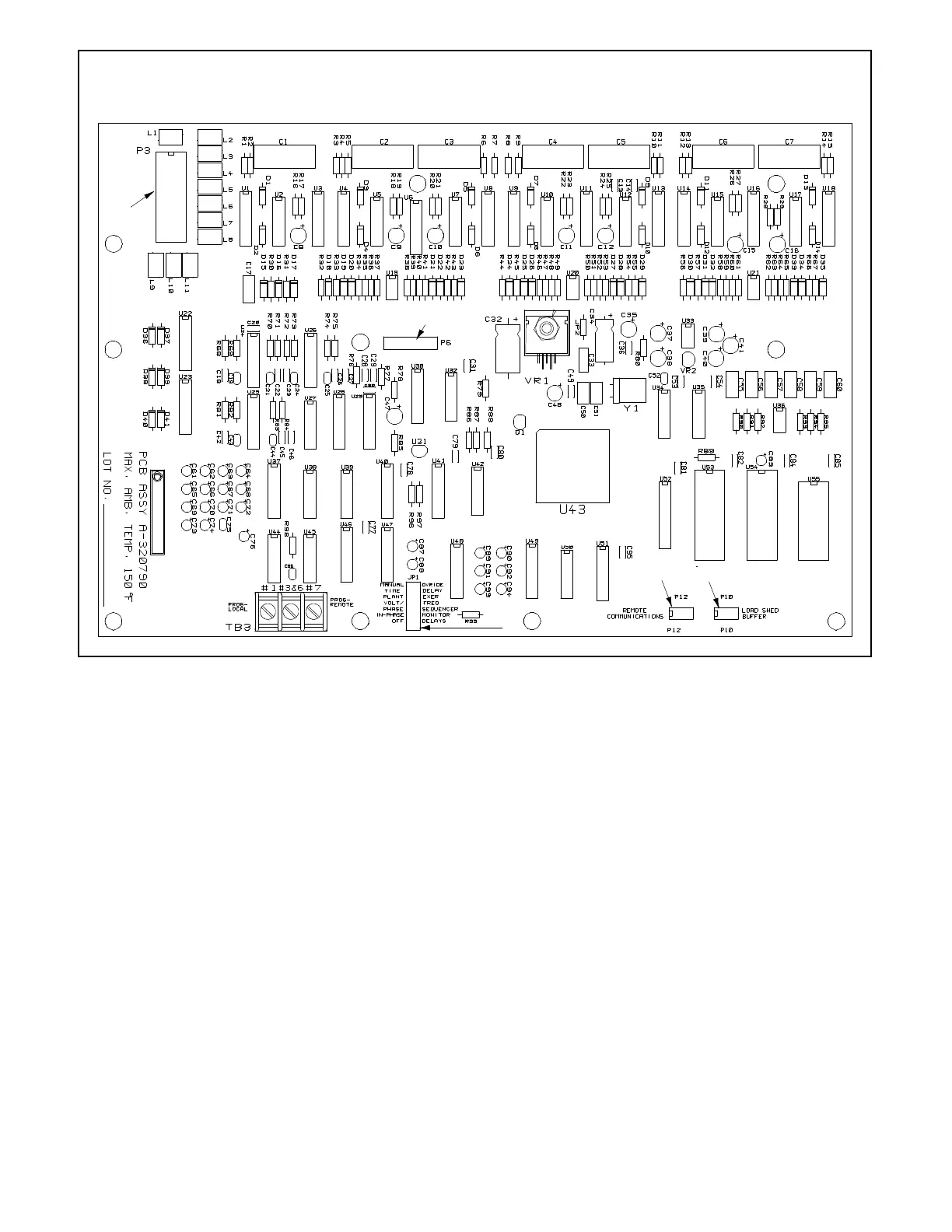

Figure B-11. Main logic board
