KOLARC MX600 - Generator-Powered Operation; Generrator Powered Operation; Receptacle Information

21
Voltage Read
Cablo
No
Jak
Letter
Molex
Socet
Name

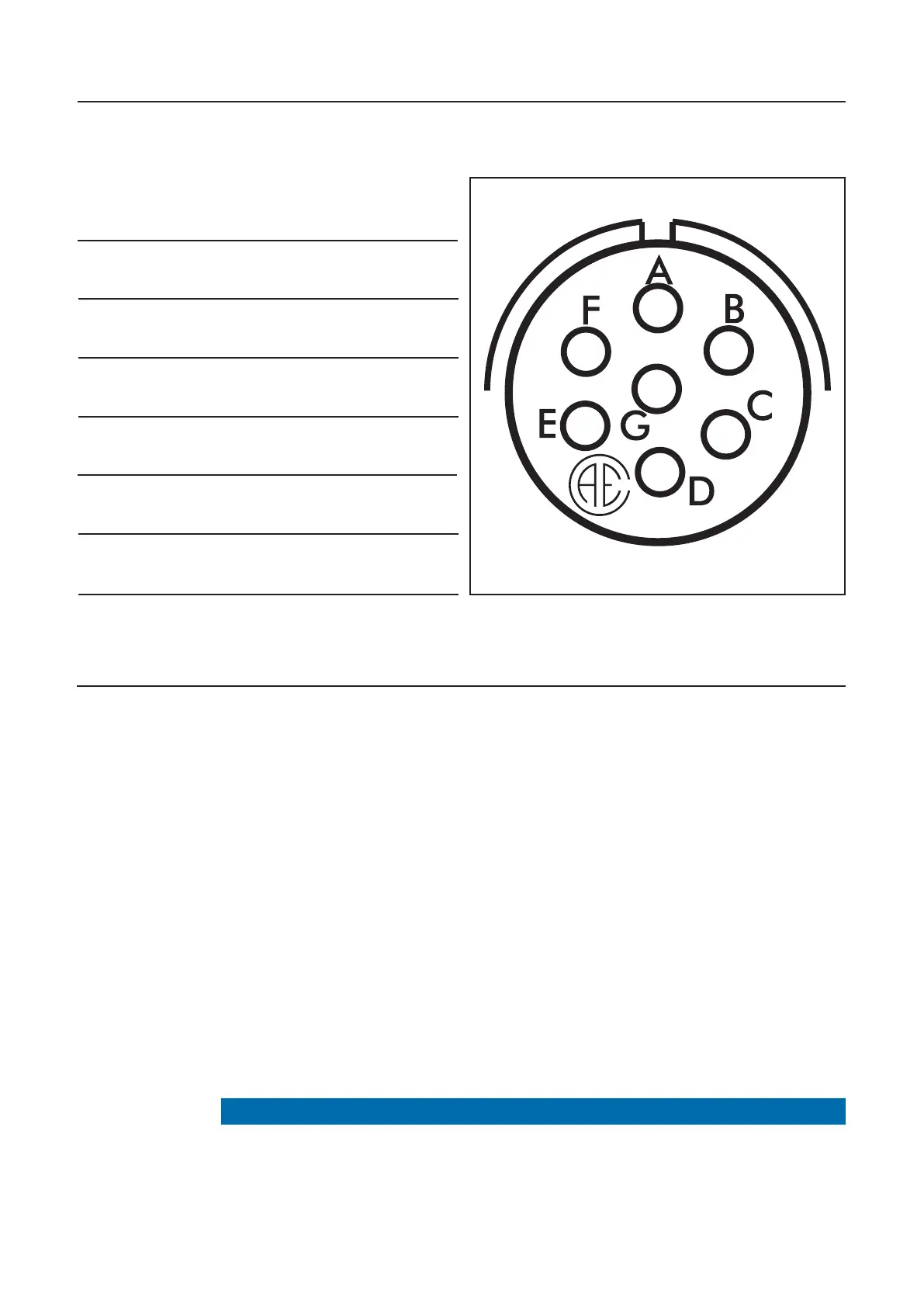

Receptacle Information
9
8
5
6
7
3 - 4
1-2
A
B
C
F
G
D
E
14
4
5
6
3
2-9
1-8
TX-
RX+
RX-
TX+
24 VAC
24 VAC
NOTE!
Generator-Powered Operation
Generator
powered
operation
The voltage delivered by the generator must never fall outside of the mains
voltage tolerance range.
The mains voltage tolerance is specified in the “Technical data” section.
The power source is generator-compatible.
The maximum apparent power S1max of the power source must be known in order to
select the correct generator output.
The maximum apparent power S1max of the power source is calculated for 3-phase
devices as follows:
S
1max
= I
1max x
U1 x √3
I1max and U1 according to the device rating plate and technical data
The generator apparent power SGEN needed is calculated using the following rule of
thumb:
S
GEN
= S
1max
x 1.35
A smaller generator can be used when not welding at full power.
IMPORTANT! The generator apparent power SGEN must not be less than the maximum
apparent power S1max of the power source!
