Feed rollers
placement /
changing
CAUTION!
Danger due to sudden raising of the feed rollers.
Serious injuries may occur.
▶ Keep your fingers away from the left and right areas of the arm when unlocking the handle.

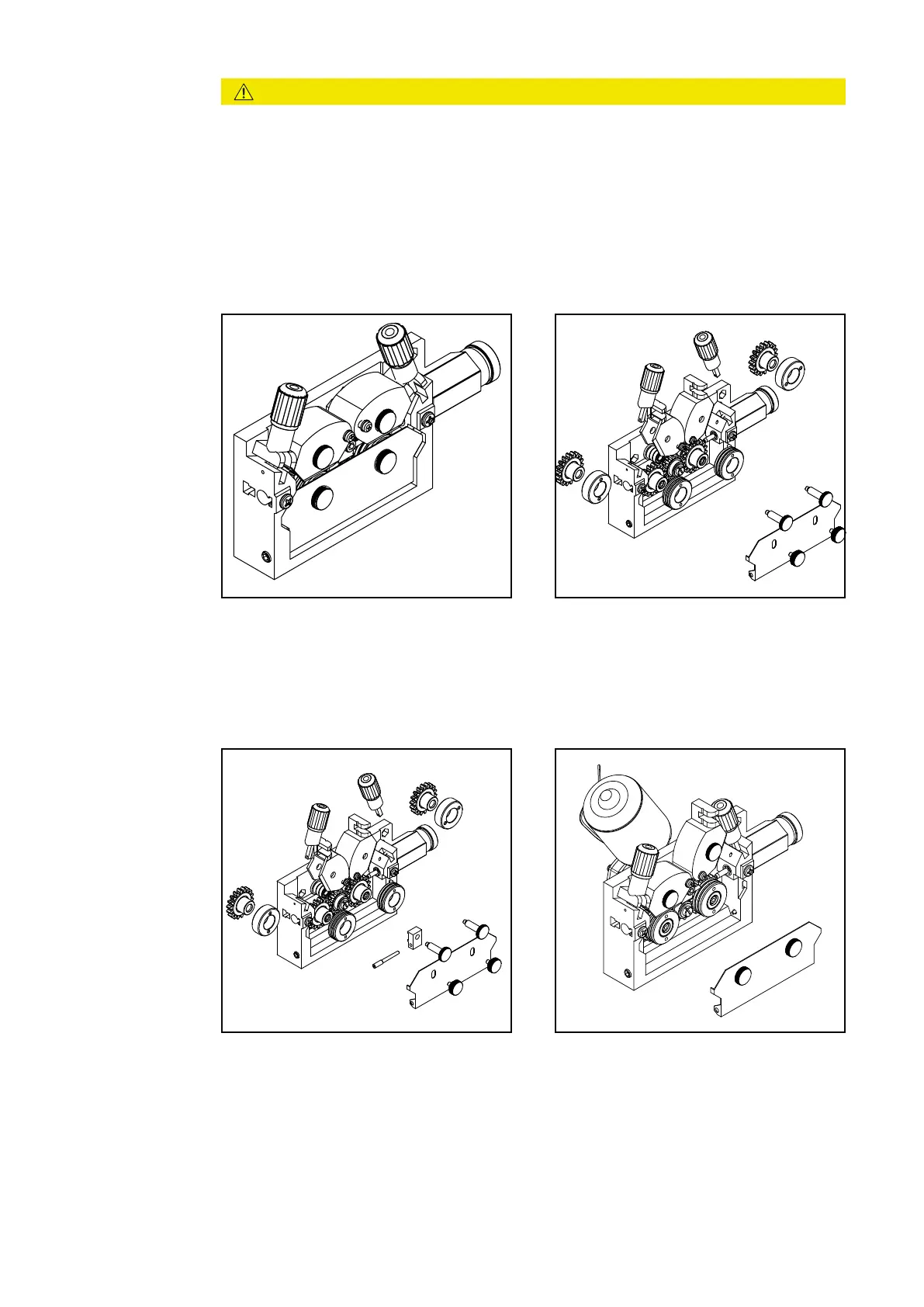

1. In this photograph we can see the wire feeder unit in its proper form
2. After removing the wire feeder motor cover you have to pull the wire feeder handles as indicated by
the arrows to replace the rollers.
▶ Always install the 4 roller drive motor protective cover after replacing the feed roller.
3. Change the wirefeeder rollers, pressure rollers etc as per your needs.
4. Close the wire feeder roller properly
