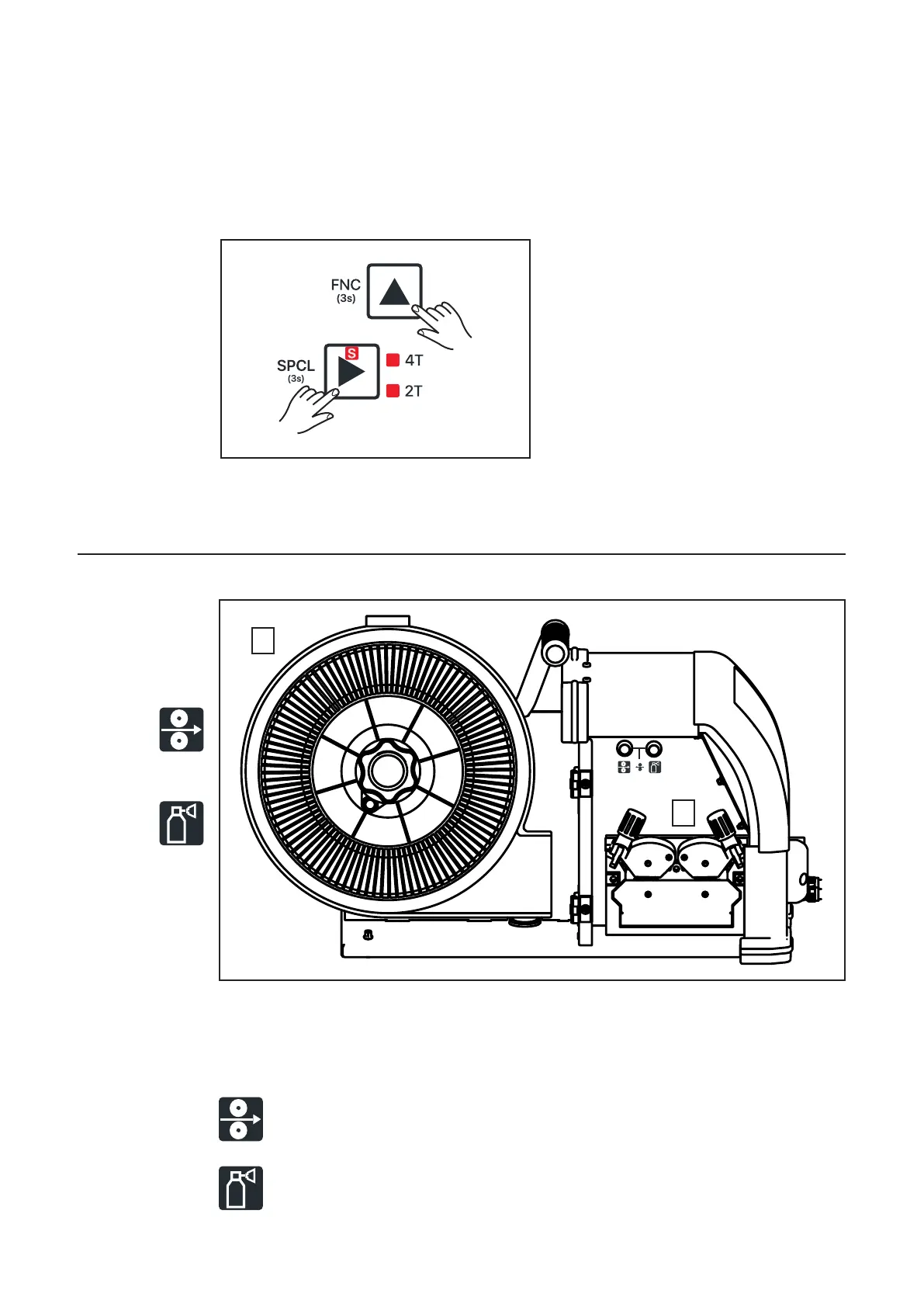

FNC key is pressed and hold for three seconds helps you to select the functions as given on the
Function Table (given on page number 27)
SPCL key if pressed and hold for three seconds helps you to select between 2T/4T and S2T/S4T
functions. Once the SPCL or special 2T/4T is activated the LED denoted by letter S starts blinking.
Activating/deactivating the FNC/2T/4T/S2T/S4T :
Side view
wire feed
buttons
1
2
This button when pressed and hold helps you to feed wire
This button when pressed and hold helps you to feed gas
gas test
buttons
(1) Wire spool holder with brake max. 300 mm (11.81 in.) diameter and max. 19 kg
(41.89 lb.) standard wire spool for slot
(2) 4 roller drive
Connections, switches and mechanical components
