20
Connecting Input Power
Power source Cable cross-section
MX600 Pulse AWG 12 *) 4x6
MX500 Pulse AWG 10 *) 4x6
MX400 Pulse AWG 10 *) 4x4
Strain-relief devices for other cable cross-sections must be designed accordingly.
General
Connect the mains
cable
If no mains cable is connected, a mains cable that is suitable for the connection voltage
must be fitted before commissioning.
A strain-relief device for the following cable cross-sections is fitted to the power source:
Safety
WARNING!
Danger from work that is not carried out properly.
This can result in severe personal injury and damage to property.
▶ The work described below may only be performed by trained specialist personnel.
▶ Follow national standards and guidelines.
CAUTION!
Danger from improperly prepared mains cable.
Short circuits and damage to property may result.
▶ Fit ferrules to all phase conductors and the ground conductor of the stripped mains
cable.

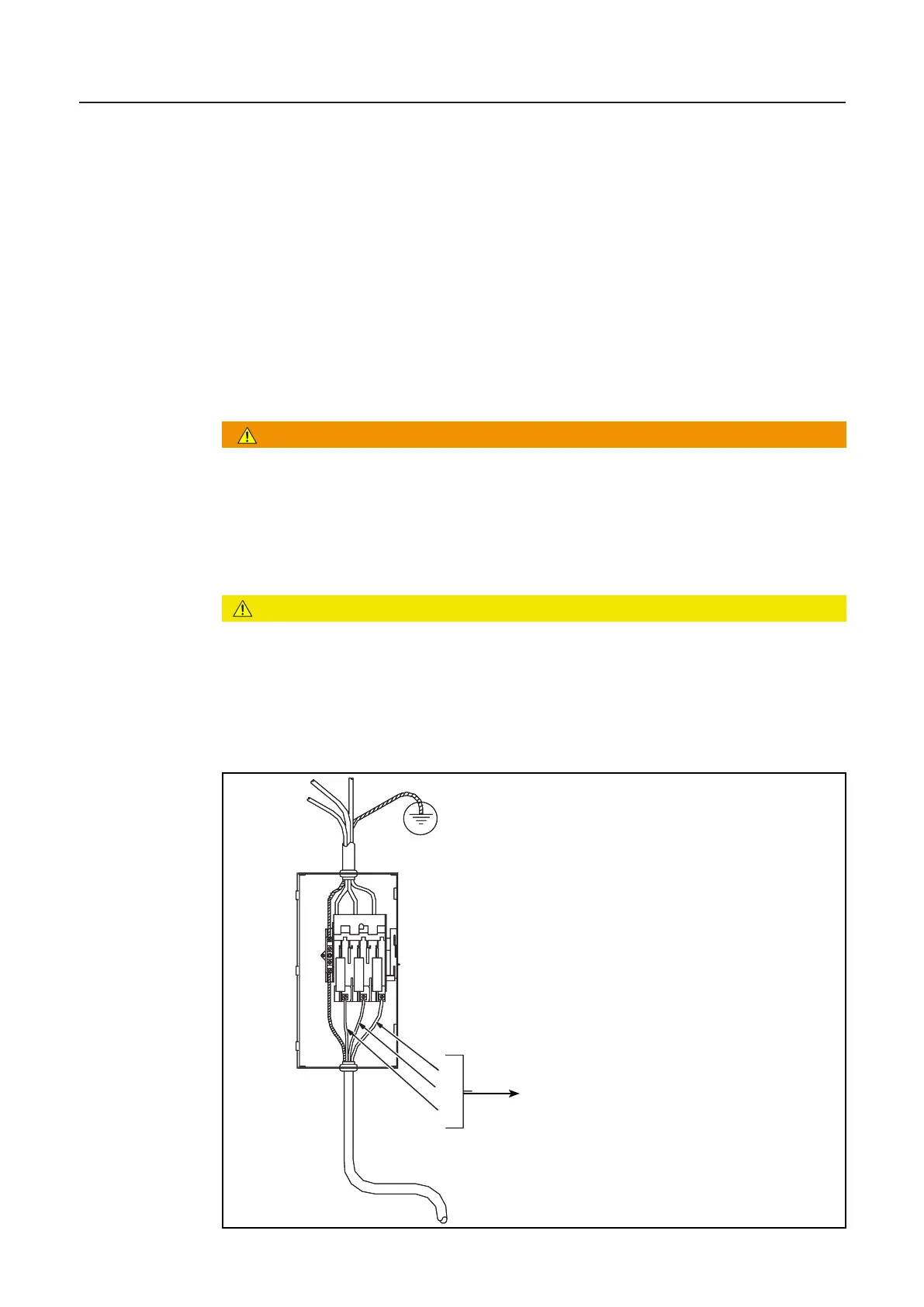

Input Conductors (L1, L2 and L3)
Connect the input conductors to
separate the L1, L2 and L3
device line terminals.
L 1
L 2
L 3
Yellow and Green (Earth ground)
