Installation
Note: You may need to contact an electrician if your room’s circuit is not able to power your unit.
Note: To avoid risk of injury or product/property damage, please take the following precautions:
• Two or more people are needed to properly handle and install the unit.
• Use proper lifting and carrying techniques.
• Before installation, make sure to inspect the window and sill to ensure they are able to handle
the weight and size of this unit.
• Wearing protective gloves will help avoid injury from sharp edges.
Before you begin, make sure you have all the parts necessary for installation.
If you have multiple windows, choose one that is near an electrical outlet that will be able to provide sucient
power to your unit. See the power requirements listed on the product label printed on the side or back of your air
conditioner.
The following measurements are required to properly install the air conditioner.
• Window Width:
23” to 36” (WAC8003WCO, WAC10003WCO & WAC12003WCO)
28” to 40 ½” (WAC15003WCO)
• Window Minimum Height:
14” (WAC8003WCO) | 15 ½” (WAC10003WCO & WAC12003WCO) | 18 ½” (WAC15003WCO)

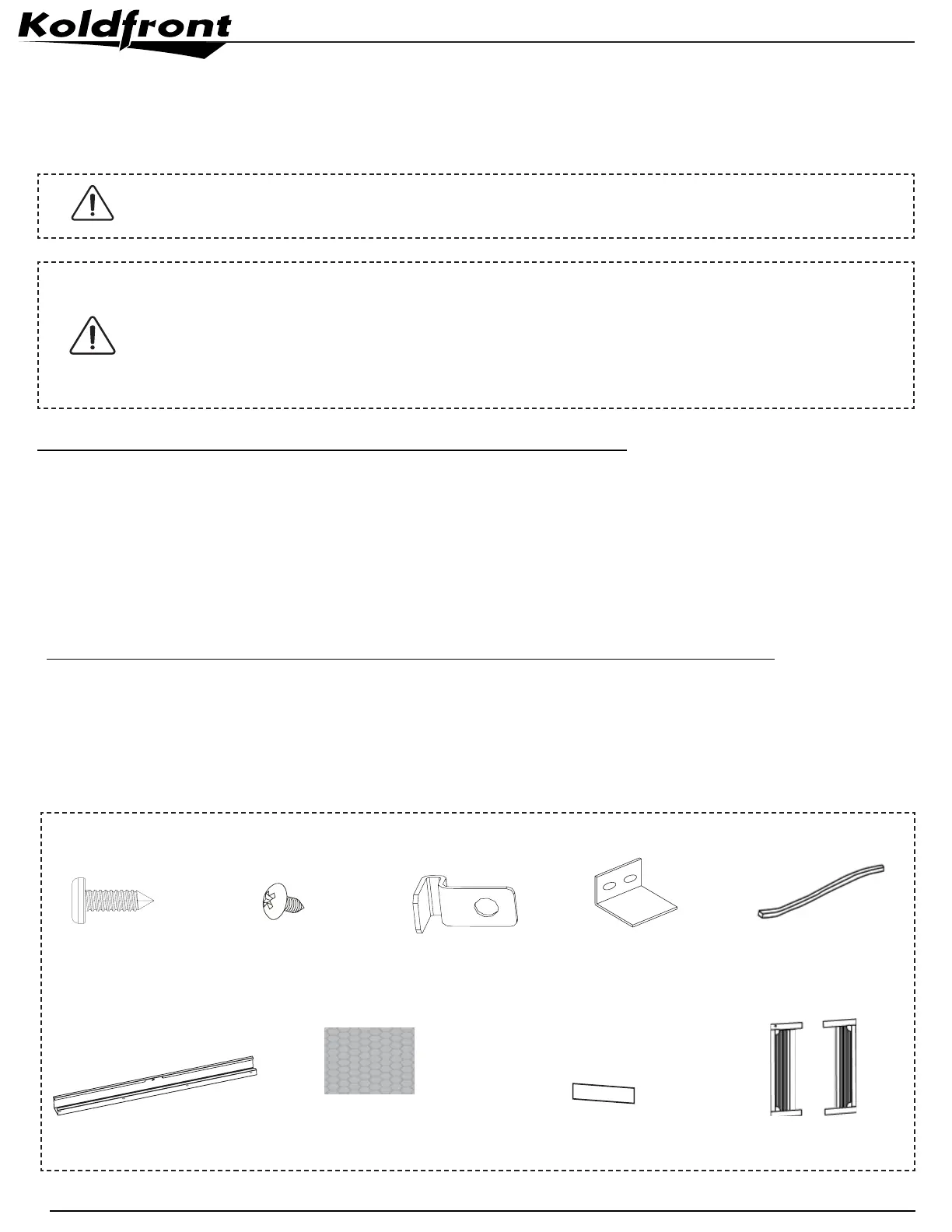

Tools Needed
Parts Supplied
• Phillips Screwdriver • Tape Measure • Level • Drill • 1/8” Drill Bit
Window sash
seal (1)
Window Lock (1)
Side curtain
brackets (2)
1/2” screws (7)
3/8” screws (4)
Top Channel (1)
Insullation Panels (2)
(WAC15003WCO only)
Weather Stripping (5) Side Curtains (2)
