10

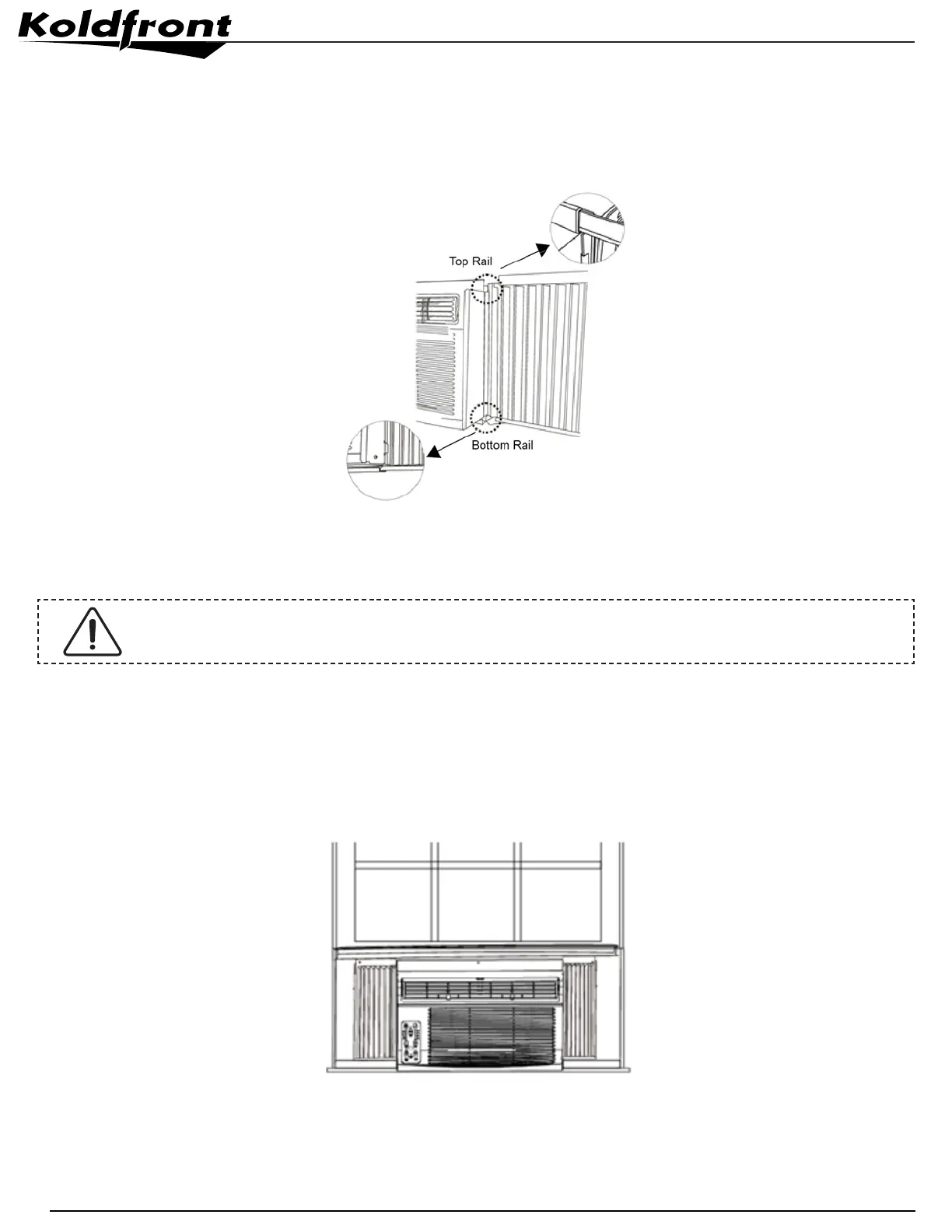

Installing Unit Into Window
5. Insert the top and bottom of the curtain housing to the top curtain and bottom curtain channel.
Note: When choosing your window, make sure the power supply cord is within four (4) feet of a
grounded 3-prong outlet.
Follow the steps listed below to install the air conditioner into the window.
1. Center the air conditioner cabinet into the window:
• Check that the lower rail of the air conditioner cabinet is behind and against the back side of the window sill.
• Maintain a rm hold on the cabinet and lower the window sash to hold the cabinet in place.
• Measure the distance of the right side and left, and adjust until the unit is perfectly centered.
To Next Page
