12

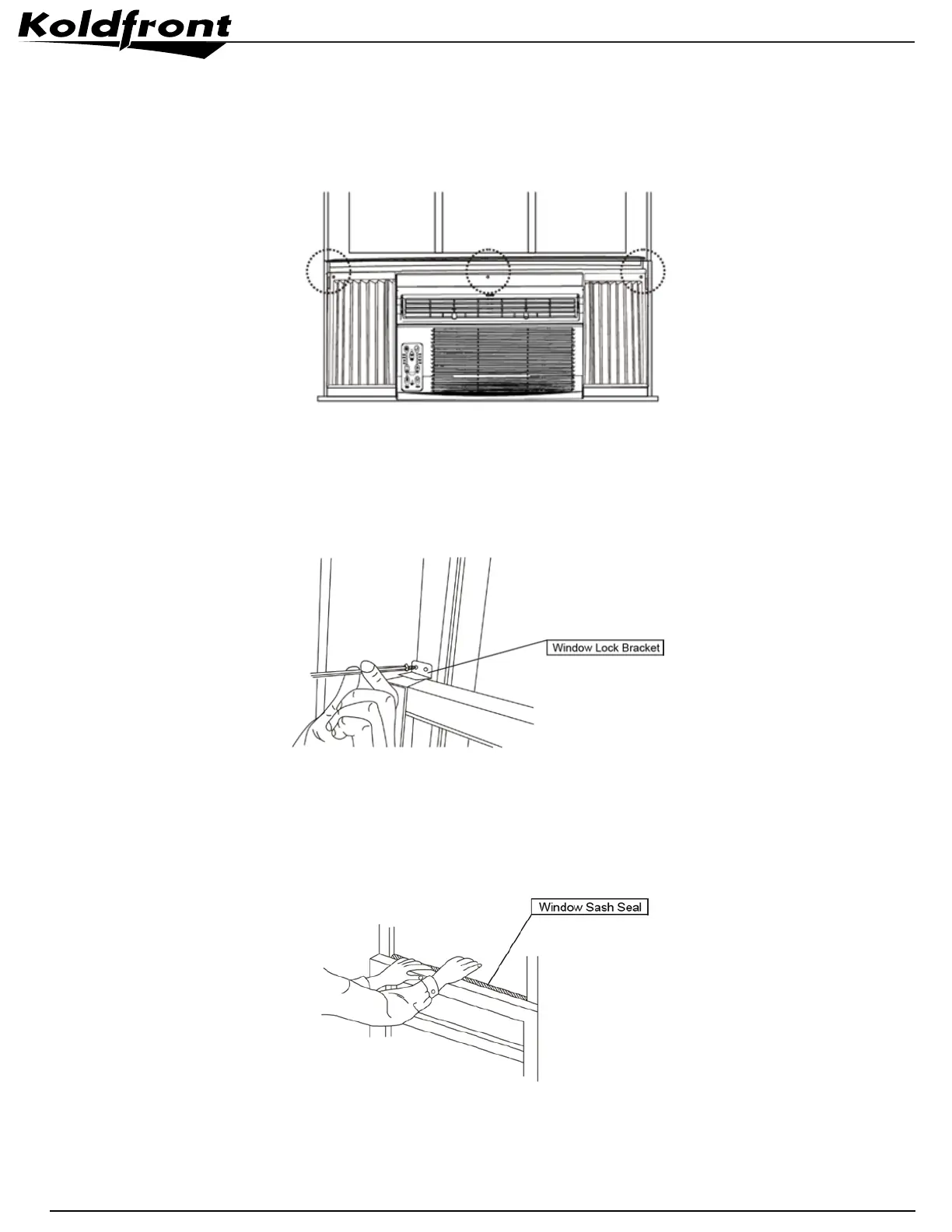

4. Attach Side Curtains to Window Frame
• Use three (3) ½” Philips head screws to attach the side curtain frame and top channel to the window sash.
5. Attach Window Lock Bracket
• Secure the lower window sash to the upper window sash with the Window Lock Bracket.
• Use two (2) ½” Philips head screws to attach the bracket to the upper window sash.
• Once installed, the bracket will prevent the lower window sash from being raised upwards.
Sealing Air Gaps
1. Install Window Sash Seal
• Trim the window sash seal (foam) to the appropriate length and insert it into the gap between the upper and
lower window sashes.
To Next Page
