9
Preparing the unit for window Installation
Please follow all installation instructions to avoid personal injury or damage. It is important that you save all original
packaging materials in case you need to safely transport your air conditioner. Packaging materials must be stored
away from children and in a safe manner.
Note: The unit must be installed rmly and securely to prevent excessive noise and vibration.

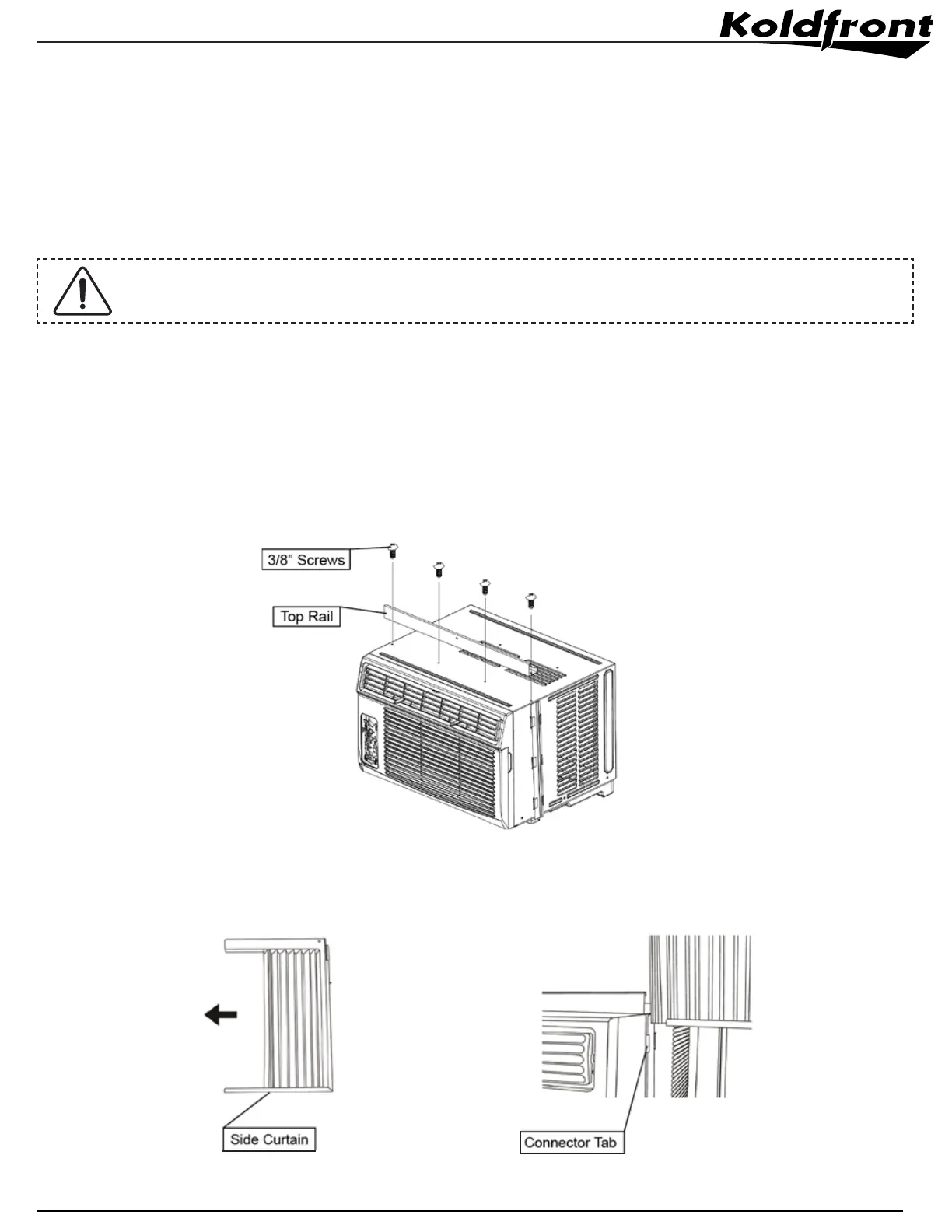

Attaching the Top Channel and Side curtains
Make sure to attach the top channel and side curtains prior to installing the cabinet into the window.
1. Set the air conditioner unit on a table or other solid work surface.
2. Place the top channel on top of the air conditioner cabinet, lining up the four (4) holes in the top channel with
the four (4) holes on top of the cabinet.
3. Use four (4) 3/8” Phillips screws to attach the top channel to the top of the cabinet.
4. To attach the side curtains to the air conditioner, start by gently extending the accordion panel until you can
insert the open end into the connector tabs located on the side of the unit.
